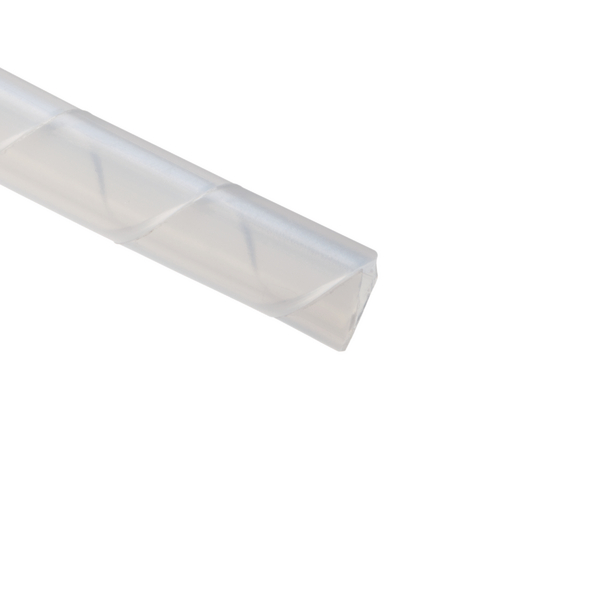

Spiral wrap, nom⌀3.18mm, ⌀1.6-12.7mm, -60 °C to +88 °C, natural, 30.48m
Art.-No. 161-05013 | 1NFP-PE-NA |

Copied
Spiralwrap protective sheathing is reusable and resistant to most chemicals.
Sheathing allows flexible routing and lead-out of cables.

    • For organising and protecting wires, cables and tubes
    • Wide range of diameters and colours
    • Capable of retro-fitting
    • Wires can branch out at any point, in any direction
    Add to watchlist
    Downloads
    Application Spiral binding is used to route and bind cables and wires which need high mechanical protection, for instance in the automobile industry as well as in control panels and cabinets. It is also used in electrical installation, where fire safety is a primary consideration.
    Colour Natural (NA)
    Material Polyethylene (PE)
    PART DESCRIPTION 1NFP-PE-NA
    Package Content 30.48m
    Package Content packed in pack
    Product Group Spiralwrap
    Type 1NFP
    UV-Stabilised No
    Variant Spiral Binding
    ⌀ D 0.125"
    Bundle ⌀ 1.6-12.7mm
    Bundle ⌀ max. 12.7mm
    Bundle ⌀ min. 1.6mm
    Diameter (D) 3.18mm
    Length (L) 30.48m
    Nominal ⌀ 0.13"
    Nominal ⌀ 3.18mm
    Pitch (P) 0.187"
    Pitch (P) 4.75mm
    Wall (WT) 0.81mm
    Wall (WT) 0.032"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -60 °C to +88 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E147924
    Country of Origin US
    GTIN-13 / EAN 4031026718361
    Packaging 1 - Qty 1
    Packaging 1 - Type pack
    Reel Length 100.0ft
    Reel Length 30.48m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
