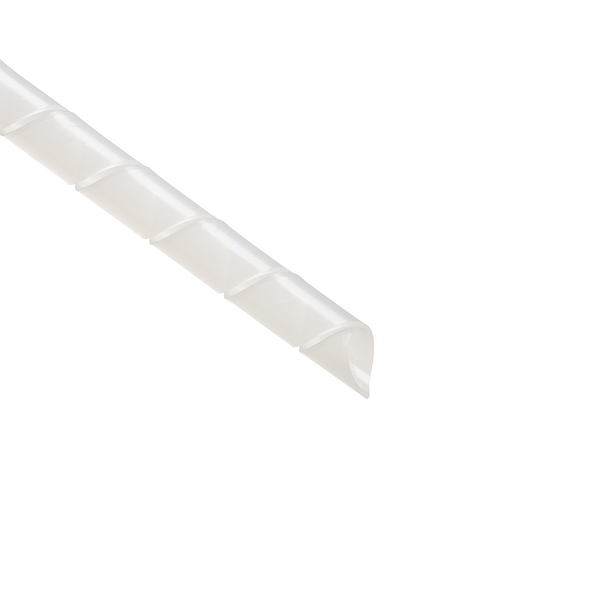

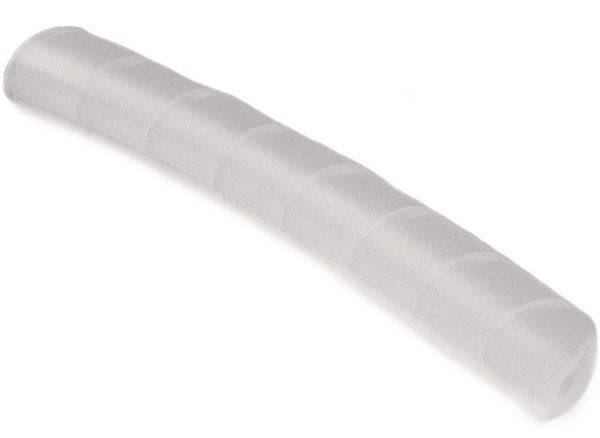

Spiralwrap Protective Sheathing
Art.-No. 161-05019 | 2.5N-PA6-NA

Copied

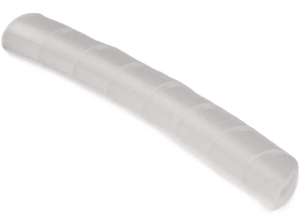

Spiralwrap protective sheathing is reusable and resistant to most chemicals.
Spiralwrap protective sheathing is reusable and resistant to most chemicals.
Sheathing allows flexible routing and lead-out of cables.
Spiral binding

    • Sheathing allows flexible routing and lead-out of cables
    • The inner edges are beveled preventing damage to cables
    • Sheathing is reusable and resistant to most chemicals
    • Spiralwrap is U.L. Recognized
    Add to watchlist
    Downloads
    Brand Family N-Series
    Color Natural (NA)
    Description HellermannTyton’s Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize.
    PART DESCRIPTION 2.5N-PA6-NA
    Packaging Type pack
    Part No. 2.5N9C
    Short Desc. Spiralwrap Protective Sheathing, 0.38" Diameter, PA6, Natural, 100 ft/roll
    Type 2.5N
    UV Resistant No
    Diameter (imperial) 0.375"
    Diameter (metric) 9.53mm
    Length (imperial) 100.0ft
    Length (metric) 30.48m
    Max. Bundle Diameter (imperial) 3"
    Max. Bundle Diameter (metric) 76.2mm
    Min. Bundle Diameter (imperial) 0.31"
    Min. Bundle Diameter (metric) 7.92mm
    Nominal Diameter (imperial) 0.38"
    Nominal Diameter (metric) 9.53mm
    Pitch (imperial) 0.438"
    Pitch (metric) 11.13mm
    Reel Length (imperial) 100.0ft
    Trade Size 3/8 "
    Wall Thickness (imperial) 0.035"
    Wall Thickness (metric) 0.89mm
    CE Certification No
    CSA Certified No
    Halogen Free Yes
    Material PA6
    Material Polyamide 6 (PA6)
    Operating Temperature -40°F to +250°F (-40°C to +121°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL File Number [Logo] E147924 [RU]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Pkg. Qty. 100ft
    Pkg. Qty. 30.48m
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
