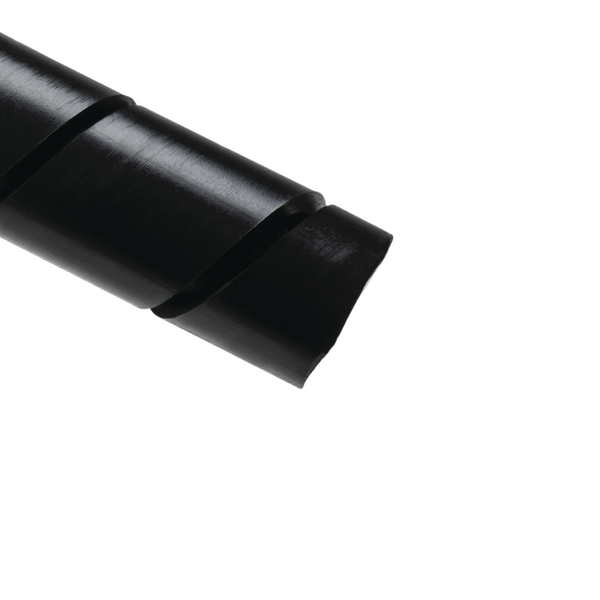

Spiralwrap
Art.-No. 161-05048 | 3FRP-PE-FR-BK Details

  • Used for organising and protecting wires, cables and tubes
  • Available in a wide range of diameters and colours
  • Can be fitted onto cables, wires or tubes in situ
  • Wires can branch out at any point and in any direction
Colour Black (BK)
Material Polyethylene, flame retardant (PE-FR)
Pack Cont. 30.48m
Package Content packed in reel
PART DESCRIPTION 3FRP-PE-FR-BK
Product Group Spiralwrap
Variant Spiral Binding
Bundle Diameter max (metric) 102.0mm
Bundle ∅ 9.52-102.0mm
Bundle ∅ min. 9.52mm
Diameter (D) 12.7mm
Length (L) 30.48m
Nominal ∅ 12.7mm
Nominal ∅ 0.5"
Pitch (P) 14.3mm
Pitch (P) 0.56"
Wall (WT) 1.57mm
Wall (WT) .062"
∅ D 0.5"
CE Certification No
CSA Certified No
Flammability UL 94 V2
Halogen-free No
Operating Temperature -20 °C to +80 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E147924
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026718675
Reel Length 30.48m
Reel Length 100.0ft
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
UNSPSC Key 39131604
