13/07/2026

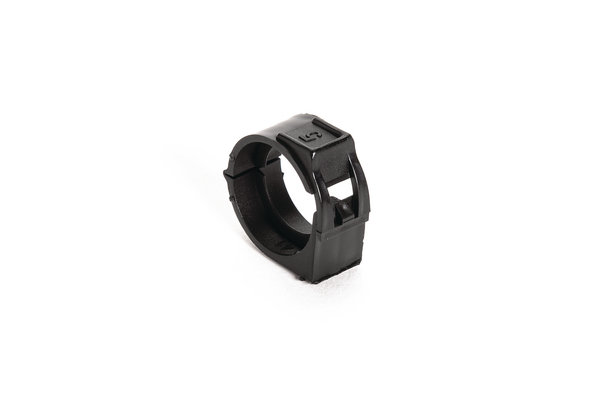

Corrugated tubing, nom⌀9.6mm, ID=9.6mm, black, 2500pcs.


Art.-No. 167-00224

| CTHC-EC3-PP-BK

 |

Copied
Living hinge allows harness serviceability and reduces assembly time.

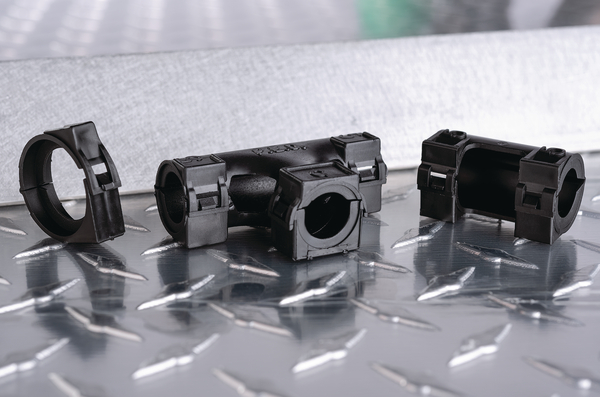

Hinged breakout, end clip and connector shown.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polypropylene (PP)
    PART DESCRIPTION CTHC-EC3-PP-BK
    Package Content 2500pcs.
    Package Content packed in pack
    Type CTHC-EC3
    UV-Stabilised No
    Variant Clamps
    ⌀ D 0.38"
    Bundle ⌀ 9.5-9.5mm
    Bundle ⌀ max. 9.5mm
    Bundle ⌀ min. 9.5mm
    Diameter (D) 9.5mm
    Inner Diameter D (Imperial) 0.38"
    Inside ⌀ (ID) 9.6mm
    Nominal ⌀ 0.38"
    Nominal ⌀ 9.6mm
    Outside ⌀ (OD2) 0.38"
    Outside ⌀ (OD2) 9.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -20 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026622040
    Packaging 1 - Qty 2500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 4.99kg
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Width (m) 0.31115m
    UNSPSC Key 39131706

    Solutions

    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.

    Cable wraps
    Art.-No.: 167-00224 Contact
