Convoluted Tubing - Accessories
Art.-No. 167-00225 | CTHC-T557-PP-BK

Copied
Living hinge allows harness serviceability and reduces assembly time.
Living hinge allows harness serviceability and reduces assembly time.

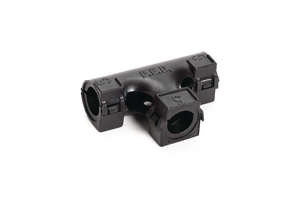

Hinged breakout, end clip and connector shown.

    • Living hinge allows harness serviceability and reduces assembly time.
    • Internal ribs affix to exterior of tubing which prevents slipping during tension or movement.
    • Snap-on connection makes installations quick and easy and increases efficiencies in harness assembly.
    • Junction point outlets offer additional areas to branch off wires and prevents wires from sliding or accidental removal from tubing.
    • Improves aesthics of assembled wire harness.
    • No tools required to disassemble.
    Add to watchlist
    Downloads
    Color Black (BK)
    Description Convoluted Loom fittings are single piece hinged connectors that simply snap-on over slit and unslit loom tubing to secure wire branchouts or, connect different tubing diameters. The unique wrap around design makes installation easier and more efficient, while the unique junction points make easy branchouts that keep wires from sliding out of the tubing and eliminates need for secondary taping operation. The polypropylene material creates a sleek assembly and improves the appearance of the entire wiring assembly.
    PART DESCRIPTION CTHC-T557-PP-BK
    Packaging Type pack
    Part No. 167-00225
    Short Desc. Hinged Convoluted Tubing T-Fitting, L- 0.50" x C- 0.50" x R- 0.75", PP, Black, 180/pkg
    Type CTHC-T557
    UV Resistant No
    Diameter (imperial) 0.5"
    Diameter (metric) 12.7mm
    Diameter 2 (imperial) 0.75"
    Diameter 2 (metric) 12.7mm
    Diameter 3 (imperial) 0.5"
    Diameter 3 (metric) 12.7mm
    Inner Diameter (imperial) 0.75"
    Inner Diameter 2 (metric) 12.7mm
    Max. Bundle Diameter (imperial) 0.50"
    Max. Bundle Diameter (metric) 12.7mm
    Min. Bundle Diameter (imperial) 0.50"
    Min. Bundle Diameter (metric) 12.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen Free Yes
    Material PP
    Material Polypropylene (PP)
    Operating Temperature -4°F to +194°F (-20°C to +90°C)
    Prop65 Warning No
    REACH Conformity No
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Packaging 1 - Weight (kg) 3.6kg
    Pkg. Qty. 180Pieces
    Pkg. Qty. 180
