Helawrap Cable Management System
Art.-No. 161-63403 | HWPAV025-PA6V0-BK

Copied
HelaWrap - flame retardent cable cover - HWPAV0 - black.
HWPP is commonly used wherever high flexibility is required, such as in the door area of wiring panels.
Cables can be branched off at any point for better, more flexible protection.

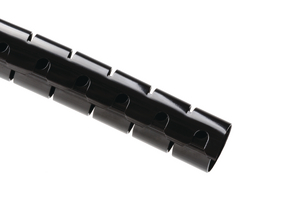

Designed for applications that demand high flame retardant materials.
Flexible construction and design eliminates pinch points and minimizes bending fatigue, making it ideal for applications involving movement and vibration.
Flexible construction and design eliminates pinch points and minimizes bending fatigue, making it ideal for applications involving movement and vibration.
Place the HAT applicator tool in one end of the Helawrap cable cover.
Insert one or more cables into the insertion slot of the HAT applicator tool.
Simply slide the HAT applicator tool through the Helawrap cover.

    • Unique open design allows for easy branch-offs at any point along the harness.
    • Overwrap formation provides abrasion protection and accommodates multiple bundle configurations.
    • Flexible construction and design is well suited for applications that involve movement and vibration.
    • Easy to use installation tool makes assembly fast and easy.
    Package size
    Add to watchlist
    Downloads
    Application Helawrap HWPAV0 is used to bundle and protect cable and wires, especially if there is vibration and abrasion. HWPAV0 has excellent flame-retardant properties and is halogen-free.
    Brand Family Helawrap
    Color Black (BK)
    Description The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Helawrap easily wraps around cables with a "zipper-like" motion to protect against abrasion and mechanical stress caused by movement and bending. A handy application tool is included in every package for faster installations.
    PART DESCRIPTION HWPAV025-PA6V0-BK
    Packaging Type pack
    Part No. 161-63403
    Product family Cable Protection Systems
    Short Desc. Helawrap, HWPAV025, 1" (25mm) Dia, PA6V0, Black, 100 ft/reel
    Type HWPAV025
    UV Resistant No
    Diameter (imperial) 1.0"
    Diameter (metric) 25.0mm
    Length (imperial) 100.0ft
    Length (metric) 30.48m
    Max. Bundle Diameter (imperial) 1.06"
    Max. Bundle Diameter (metric) 27.0mm
    Min. Bundle Diameter (imperial) 0.91"
    Min. Bundle Diameter (metric) 23.0mm
    Nominal Diameter (imperial) 1"
    Nominal Diameter (metric) 25.0mm
    Pitch (imperial) 0.79"
    Pitch (metric) 20.07mm
    Reel Length (imperial) 100.0ft
    Trade Size 1 "

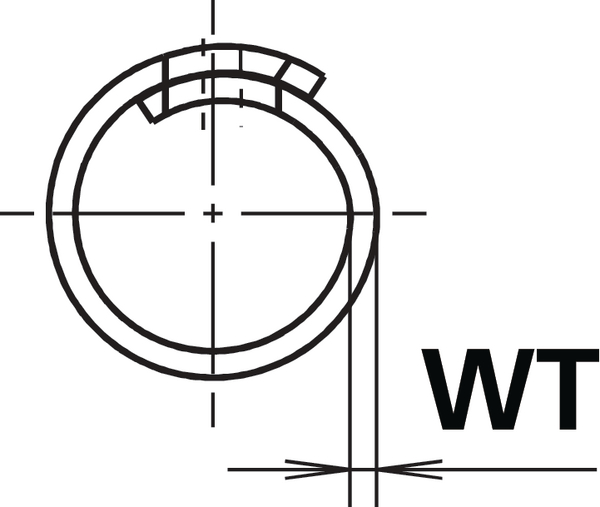

    Wall Thickness (imperial) 0.041"
    Wall Thickness (metric) 1.05mm
    CE Certification No
    CSA Certified No
    EN 45545-2 Results R22 HL2, R23 HL3
    Flammability UL 94 V-0
    Halogen Free Yes
    Material PA6V0
    Material Polyamide 6 V0 (PA6V0)
    Operating Temperature -40°F to +194°F (-40°C to +90°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL File Number [Logo] E341700 [RU]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Packaging 1 - Weight (kg) 3.66kg
    Pkg. Qty. 100ft
    Pkg. Qty. 30.48m
