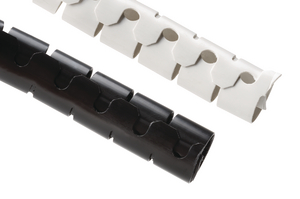

Helawrap cable cover : HWPP8

Cable cover 7 mm - 9 mm, PP, black, 25m + tool, Article number: 161-64101

Features

  • Ideal solution for bundling, protecting and fixing cables
  • Quick and effortless to apply
  • Good abrasion protection
  • Special profile enables branching off cable at any point
  • Can be removed and reapplied often
  • Available in several colours and sizes
  • Handy HAT applicator tool included

Certifications & Approvals

Application

Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.

Application 2 Ideal for bundling and protecting cables and wires can be removed and reapplied easily. Due to its excellent flame-retardant properties Helawrap Polyamide 6 VO is used wherever fire protection is essential.
Application Tool HAT8
Colour Black (BK)
Content 25m + tool
Pack Cont. 25m
Package Quantity per bag
PART DESCRIPTION HWPP8-PP-BK
Product Family HWPP in polypropylene
Product Group Helawrap cable cover
Short Description Cable cover 7 mm - 9 mm, PP, black, 25m + tool
Variant Spiral Binding
Bundle ∅ max. 9mm
Bundle ∅ min. 7mm
Diameter (D) 8.0mm
Length (L) 25m
Nominal ∅ 8mm
Nominal ∅ 0.31"
Pitch (P) 10mm
Wall (WT) 0.0295"
Wall (WT) 0.75mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Intermittent Operating Temperature +140°C
Material Polypropylene (PP)
Melting Point +284 °F (+140 °C)
Operating Temperature - °C -60 °C to +110 °C, intermittent +140 °C
Specifications
Specifications ECE R 118-03 Abschnitt 6, 2017-06
EAN / GTIN 5022660178184
Packaging 1 - Height (m) 0.105m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 25
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.01638
Packaging 1 - Weight (kg) 0.57kg
Packaging 1 - Width (m) 0.395m
Packaging 3 - Height (m) 0.105m
Packaging 3 - Length (m) 0.395m
Packaging 3 - Qty 25
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0164
Packaging 3 - Weight (kg) 1.07kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.195m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.147
Packaging 4 - Weight (kg) 85.2kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
Weight 0.5kg
ETIM 6.0 EC002604
ETIM 7.0 Key EC002604
