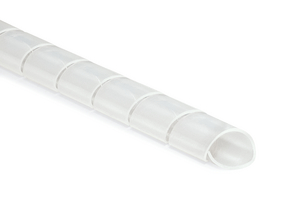

Spiral wrap, nom⌀9mm, ⌀10-100mm, -60 °C to +260 °C, intermittent +350 °C, natural, 5m
Art.-No. 161-45200 | SBPTFE9-PTFE-NA |

Copied
SBPTFE - High temperature resistant Spiral Wrap.
Spiral binding SBPTFE is ideal for extreme conditions.
Spiral binding

    • High temperature resistance
    • Excellent fire protection
    • Self-extinguishing according to UL94 V0
    • Very good solvent and acid resistance
    • Organises and protects cables and hoses
    • Suitable for retro-fitting
    • Cables branch out at any point
    Add to watchlist
    Downloads
    Application SBPTFE is recommended wherever superior protection against chemical and extreme temperatures are important.
    Colour Natural (NA)
    Material Polytetrafluoroethylene (PTFE)
    PART DESCRIPTION SBPTFE9-PTFE-NA
    Package Content 5m
    Package Content packed in box
    Product Family SBPTFE
    Product Group PTFE High temperature spiral binding
    Short Description Spiral binding PTFE transparent 5m ø 9mm
    Type SBPTFE9
    Variant Spiral Binding
    Weight/Unit 0.052kg
    Bundle ⌀ 10-100mm
    Bundle ⌀ max. 100mm
    Bundle ⌀ min. 10mm
    Diameter (D) 9mm
    Nominal ⌀ 0.38"
    Nominal ⌀ 9mm
    Pitch (P) 12.5mm
    Wall (WT) 1.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Halogen-free No
    Hazardous Goods No
    Intermittent Operating Temperature +350°C
    Nato number 9330-99-780-0647
    Operating Temperature -60 °C to +260 °C, intermittent +350 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660549113
    Packaging 1 - Height (m) 0.075m
    Packaging 1 - Length (m) 0.295m
    Packaging 1 - Qty 5
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.006526875m³
    Packaging 1 - Weight (kg) 0.26kg
    Packaging 1 - Width (m) 0.295m
    Reel Length 5m
    ETIM 7.0 Key EC002604
    ETIM 8.0 Key EC002604
    ETIM 9.0 Key EC002604
