Cassette to Cassette
Art.-No. 859-50001 | RN06G6A-CACAXX-1.0M Details

  • Exceeds Category 6A performance standards
  • 24 Ports in 1U
  • Factory pre-terminated and tested
  • Reduce installation times by up to 85%
  • Ideal solution for cabinet to cabinet installations
  • Backward compatible with Category 6, Category 5e, Category 5 and voice
Show more
Colour Violet (VT)

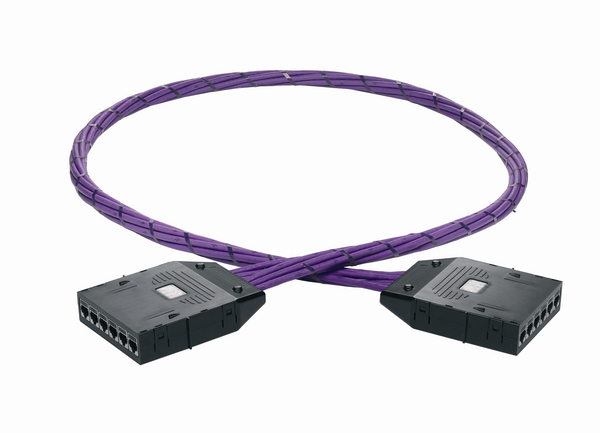

Description The Cassette to Cassette is pre-terminated with 6 F/FTP keystone jacks earthed to a plate within the cassette. The 6 port Cassette presents 6 RJ45 ports in one cassette, with 4 cassettes fitting into the standard RapidNet Patch Panel. The cassettes simply push into the panel, snapping in with a releasable clip and a fully loaded panel presents the standard 24 ports in 1U of space. The Cassette to Cassette option is specifically designed for inter cabinet installations that are common in data centre environments.
Pack Cont. 01.0m
PART DESCRIPTION RN06G6A-CACAXX-1.0M
Performance Category Category 6A (Class EA)
Port count 6
Product Family Cassette to Cassette
Product Group RapidNet 6 Port Category 6A FTP
Technical Description The shielded copper solution is designed using F/FTP Category 6A cable which provides 360° shielding and eliminates alien crosstalk. An integral earthing plate grounds each Keystone Jack helping to guarantee 10G performance by giving continuity of the 360° shielding, the earth plate in the cassette then makes contact with the earth points on the RapidNet panel. The cassette is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6A standards. All RapidNet Category 6A cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m.
Depth (D) 130mm
Height (H) 27mm
Length (L) 01.0m
Width (W) 107mm
