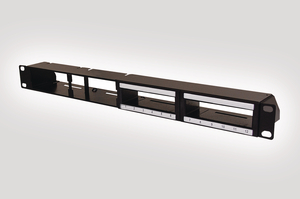

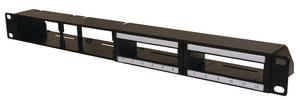

RapidNet 1U Hybrid Copper/Fibre Panel with Rack Snaps
Art.-No. 859-30042 | RNAHUXX-PA1URS-HH.SS

Versatile hybrid panel allows for mix-and-match usage of copper and fiber RapidNet.
Hybrid panel offers capacity for the equivalent of 1U of fiber and 1U of copper in 1U of rack space, giving a saving of 1U of space each time the panel is used.
Panels allow for a combination of 12-port high density copper RapidNet and 12 or 24 core fiber (direct terminated or MTP) or high density copper and RapidNet MTP VHD for up to 288 fibers.
Two configurations available. to meet your needs.

More products in this product group:

Brand Family	RapidNet
Color	Black (BK)
Description	The 1U RapidNet Hybrid Panel provides a simple 'Mix and Match' approach for both copper and fiber RapidNet. The panel offers capacity for the equivalent of 1U of fiber and 1U of copper in 1U of rack space, giving a saving of 1U of space each time the panel is used. The panels allow for a combination of 12 port high density copper RapidNet and 12 or 24 core fiber (direct terminated or MTP) or high density copper and RapidNet MTP VHD for up to 288 fibers. There are two configurations available.
PART DESCRIPTION	RNAHUXX-PA1URS-HH.SS
Part No.	859-30042
Technical Description	The RapidNet Hybrid panel is manufactured from matt black powder coated mild steel to the standard 19" width. The panel is supplied with Rack Snap fixings as standard, panels can also be supplied with Cage Nuts, screw fixings or without fixings if required. The panel has dual labelling fields which can be customised through Alpha Label software at www.htdata.co.uk.
Type	RNAHUXX-PA1URS-HH.SS

REACH Conformity

Yes
