21/05/2025

HT8006 is specifically developed to perform optimally when attached to metal objects. Difficult to damage, easy to weld, screw or otherwise attach.
Art.-No. 556-00854 | HT8006-GFEPFR-BK |

Copied

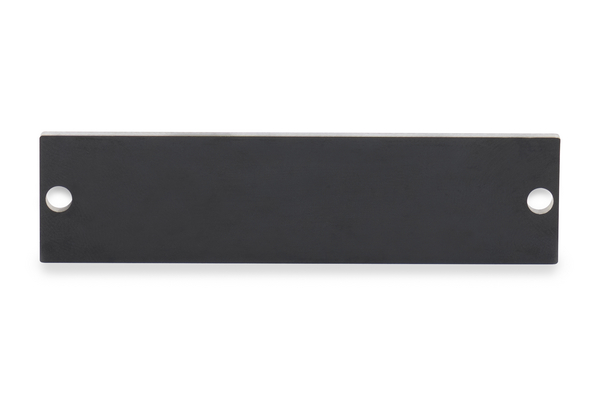

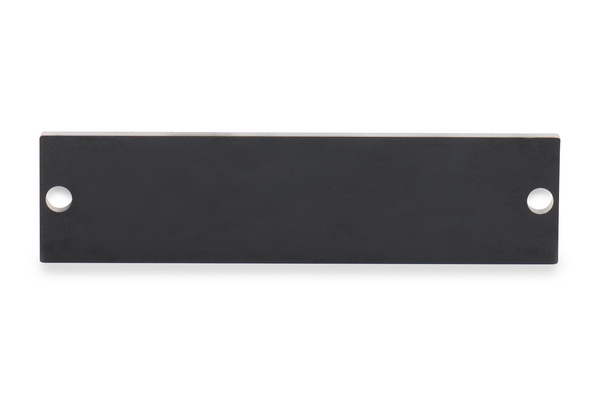

HT8006 UHF RFID TAG.

    • RFID Standard: ISO/IEC 18000-6C (EPC C1G2)
    • Chip Type: Alien Higgs-3 / Impinj Monza 5
    • EPC Memory: 96 bits to 480 bits
    • User Memory: 512 bits
    • Read Range: 902-928 MHz (>10 meters Reader Power=30dbm)
    • Read Range: 865-868 MHz (>10 meters Reader Power=30dbm)
    • Data Storage: >10 years
    • Re-write: 100,000 times
    • Installation: 3M adhesive, Screw, Magnet
    • Customization: Printing LOGO, Barcode, Encoding, Serial number, Designing, etc
    Show more
    Add to watchlist
    Application Medical devices, Surgical instruments tray, Heavy Industry, Oil & Gas & Mining, Automatic production line, Logistic tray tracking, Warehouse storage rack, Container tracking, etc
    Colour Black (BK)
    Description HT8006 UHF Durable High Temperature Metal Tag
    Material Glass-fibre, epoxy laminated, flame resistant (GFEPFR)
    PART DESCRIPTION HT8006-GFEPFR-BK
    Pack Cont. 50pcs.
    Package Content packed in box
    Product Family RFID On-Metal Tags UHF are constructed with FR-4 materials and rated IP68 for high reliability and durability for outdoor usage.
    Product Group HT8006 UHF Durable High Temperature Metal Tag
    Short Description HT8006 is specifically developed to perform optimally when attached to metal objects. Difficult to damage, easy to weld, screw or otherwise attach.
    Type HT8006
    Frequency 902-928 MHz (UHF), 865-868 MHz (UHF)
    Height (H) 3.5mm
    Length (L) 80.0mm
    Width (W) 20.0mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +150 °C
    Specifications
    Country of Origin SG
    GTIN-13 / EAN 4031026663029
    Storage Temperature -40 °C to +85 °C
    RFID technology RFID technology

    Cable ties with RFID tags: smart identification

    HellermannTyton has for many years manufactured a range of identification products that give both human readable and barcoded identification. To complete the range of asset management identification HellermannTyton has introduced a new range of RFID tags and cable accessories. The ties are especially suited for securing, serialisation, tracking and identification of products in the areas of resource management, electrical inspection, inventory, distribution and rental services as well as for easy management of maintenance and repair routines.

    RFID tracking >
    Auto ID Auto ID

    Auto ID

    Are you looking for a way to effectively track assets and stock? Auto ID offers solutions with products such as printable labels and markers, RFID cable ties, hard tags and label software.

    Auto ID >
