28/04/2024

SD30PRN
Art.-No. 142-00348 | SD30PRN-PA66-YE |  Details

SE30-Series.

    • SD30 features a gripping spike to stop slippage on cloth or textile bags
    • SE30 is commonly used for sealing doors and closures
    • Thermal transfer offset printed for highest clarity print definition
    • Available as sequential alphanumeric text but graphics and barcodes are available on request
    • Tail excess can be tidied away into the ties’ head
    • Print jobs and graphics can be transmitted electronically
    Show more
    Add to watchlist
    Downloads
    Application HellermannTyton provides a range of Pull Tight Seals that allow an audit trail to be created and easily alert the user if a package or shipment has been tampered with. The wide range of applications varies from sealing cash and mailbags to securing vehicle doors and roll cages. The products are provided un-printed however it is recommended that all of these should be sequentially numbered to achieve the maximum level of security. The range features include gripping spikes (SD30) to assist in sealing large bags and a secondary loop catchment to hold the tie's tail in place.
    Colour Yellow (YE)
    Material Polyamide 6.6 (PA66)
    Pack Cont. 100pcs.
    Package Content packed in bag
    PART DESCRIPTION SD30PRN-PA66-YE
    Product Family SD30PRN
    Product Group Custom printed pull tight plastic seals
    Bundle Diameter max (metric) 38mm
    Bundle ∅ 10-38mm
    Bundle ∅ min. 10mm

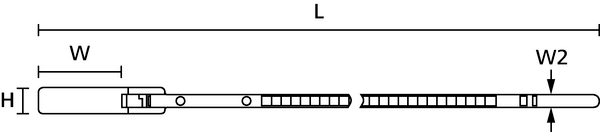

    Height (H) 8mm
    Length (L) 235mm
    Min.Tensile Strength 134N
    Print Method thermal transfer print
    Weight/Unit 0.0048kg
    Width (W) 27mm
    Width (W2) 3.8mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Specifications
    Country of Origin GB
    Customs Number 39235090
    GTIN-13 / EAN 5022660343803
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.480001kg
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 5.45001kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 130.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
