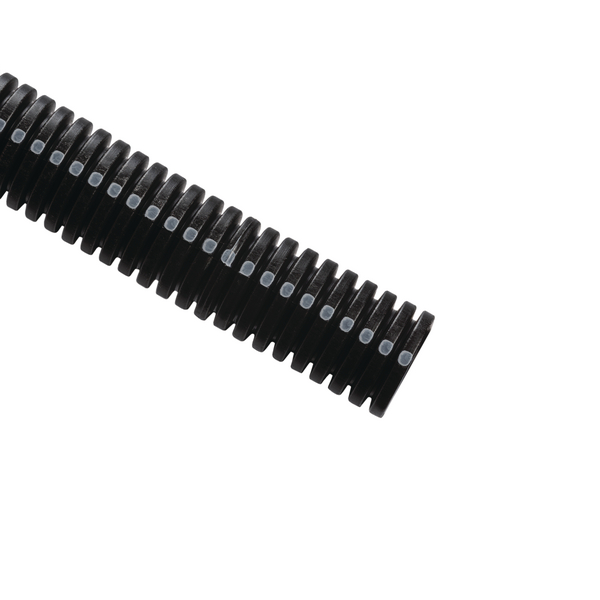

Convoluted Tubing
Art.-No. 169-60001
| CTN10-PA6-BK
Copied
- Durable tubing provides protection of wire harness from friction, vibration, fraying and puncture.
- Tubing protects cables and wires against automotive fluids and vibration wear.
- Weather resistant material provides protection against water, snow, ice, and the effects of heat or cold.
- Nylon material is formulated to withstand high temperatures.
- Lateral slit allows fast and easy insertion of wires.
More products in this product group:
| Application | Convoluted Tubing provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. |
| Brand Family | CTN-Series |
| Color | Black with Gray Stripe (BKSTGY) |
| Description | Convoluted tubing provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. It also can serve to protect valuable wiring circuits. HellermannTyton’s convoluted tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat or cold on cables and wires. Available in standard, bulk, and dispenser box packaging. Material is slit. |
| PART DESCRIPTION | CTN10-PA6-BK |
| Packaging Type | carton |
| Part No. | CTN10STD |
| Short Desc. | Convoluted Tubing, Slit, 1" Dia, PA6, Black with Gray Stripe, 300 ft/carton |
| Technical Description | Convoluted Tubing, Slit, 1" Dia., PA6, Black w/Gray Stripe |
| Type | CTN10 |
| UV Resistant | No |
|
|
|
| Diameter (imperial) | 1.304" |
| Diameter (metric) | 33.13mm |
| Diameter 2 (imperial) | 1.069" |
| Diameter 2 (metric) | 27.16mm |
| Inner Diameter (imperial) | 1.069" |
| Inner Diameter 2 (metric) | 27.16mm |
| Length (imperial) | 300.0ft |
| Length (metric) | 91.4m |
| Max. Bundle Diameter (imperial) | 1.06" |
| Max. Bundle Diameter (metric) | 27.2mm |
| Min. Bundle Diameter (imperial) | 0.1" |
| Min. Bundle Diameter (metric) | 1.0mm |
| Nominal Diameter (imperial) | 1" |
| Nominal Diameter (metric) | 25.4mm |
| Outside Diameter (imperial) | 1.304" |
| Outside Diameter (metric) | 33.13mm |
| Wall Thickness (imperial) | 0.006" |
| Wall Thickness (metric) | 0.152mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | No |
| Material | PA6 |
| Material | Polyamide 6 (PA6) |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
