CTN120UNSLIT-PA6-BK
Art.-No. 169-60028 | CTN120UNSLIT-PA6-BK |

Copied

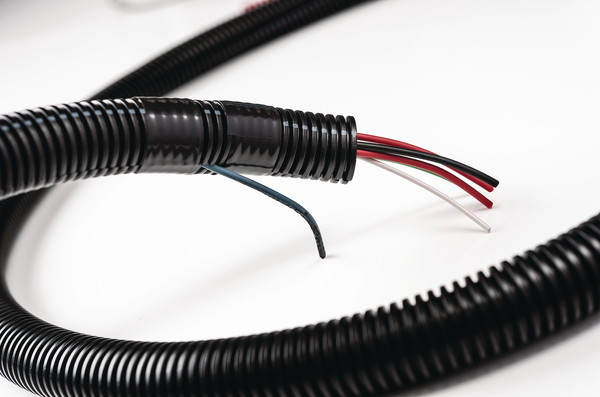

Tubing protects cables and wires against automotive fluids and vibration wear.

    Add to watchlist
    Downloads
    Colour Black with Grey Stripe (BKSTGY)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION CTN120UNSLIT-PA6-BK
    Pack Cont. 304.80m
    Package Content packed in carton
    Type CTN120UNSLIT
    Variant Unslit
    ⌀ (D2) 13.11mm
    ⌀ D 0.70"
    ⌀ D2 0.516"
    Diameter (D) 17.78mm
    Inner Diameter D (Imperial) 0.516"
    Inside ⌀ (ID) 13.11mm
    Length (L) 304.8m
    Nominal ⌀ 0.5"
    Nominal ⌀ 12.70mm
    Outside ⌀ (OD) 17.78mm
    Outside ⌀ (OD) 0.70"
    Outside ⌀ (OD2) 0.70"
    Outside ⌀ (OD2) 17.78mm
    UV-Stabilised No
    Wall (WT) 0.127mm
    Wall (WT) 0.005"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CA
    GTIN-13 / EAN 4031026747125
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 13.608kg
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
