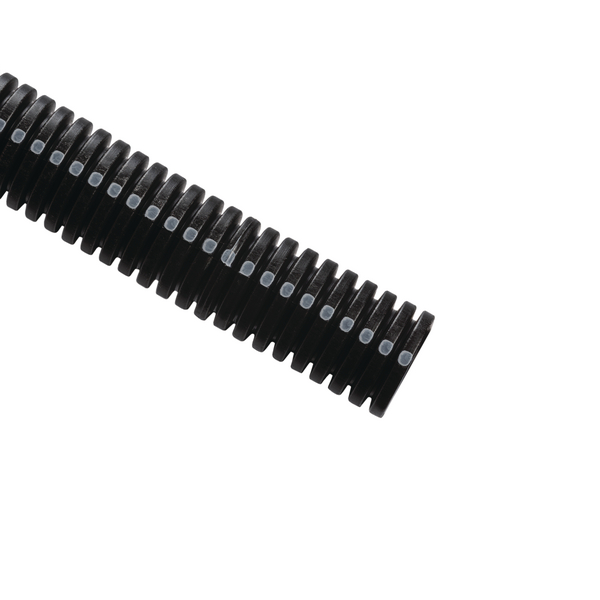

Corrugated tubing, nom⌀22.40mm, OD=29.23mm, ID=22.8mm, black, 121.9m


Art.-No. 169-60031

| CTN780-PA6-BK

 |

Copied
Tubing protects cables and wires against automotive fluids and vibration wear.
CTN series convoluted tubing.
Tubing protects cables and wires against automotive fluids, vibration wear.
Handy dispenser box simplifies transport and installation.

    Add to watchlist
    Downloads
    Colour Black with Grey Stripe (BKSTGY)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION CTN780-PA6-BK
    Package Content 121.9m
    Package Content packed in carton
    Type CTN780
    UV-Stabilised No
    Variant Slit
    ⌀ (D2) 22.8mm
    ⌀ D 1.151"
    ⌀ D2 0.898"
    Diameter (D) 29.23mm
    Inner Diameter D (Imperial) 0.898"
    Inside ⌀ (ID) 22.8mm
    Length (L) 121.9m
    Nominal ⌀ 0.88"
    Nominal ⌀ 22.40mm
    Outside ⌀ (OD) 29.23mm
    Outside ⌀ (OD) 1.151"
    Outside ⌀ (OD2) 1.151"
    Outside ⌀ (OD2) 29.23mm
    Wall (WT) 0.127mm
    Wall (WT) 0.005"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CA
    GTIN-13 / EAN 4031026754918
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    UNSPSC Key 39131601

    Solutions

    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...

    Wire conduits
