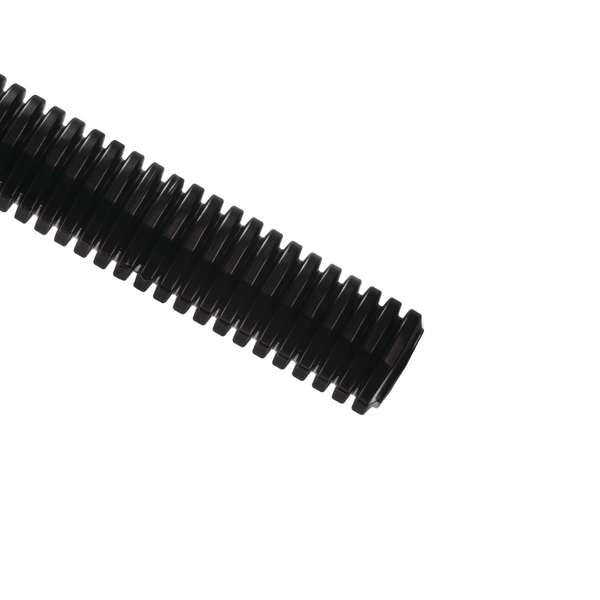

CTP1120UNSLIT-PE-BK
Art.-No. 169-60540 | CTP1120UNSLIT-PE-BK |

Copied
Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyethylene (PE)
    PART DESCRIPTION CTP1120UNSLIT-PE-BK
    Pack Cont. 30.48m
    Package Content packed in carton
    Type CTP1120UNSLIT
    Variant Unslit
    ⌀ (D2) 41.83mm
    ⌀ D 1.947"
    ⌀ D2 1.647"
    Diameter (D) 49.45mm
    Inner Diameter D (Imperial) 1.647"
    Inside ⌀ (ID) 41.83mm
    Length (L) 30.5m
    Nominal ⌀ 1.5"
    Nominal ⌀ 38.1mm
    Outside ⌀ (OD) 49.45mm
    Outside ⌀ (OD) 1.947"
    Outside ⌀ (OD2) 1.947"
    Outside ⌀ (OD2) 49.45mm
    UV-Stabilised No
    Wall (WT) 0.152mm
    Wall (WT) 0.006"
    CE Certification No
    CSA Certified No
    Flammability Not Flame Retardant
    Halogen-free No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CA
    GTIN-13 / EAN 4031026747484
    Packaging 1 - Type carton
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
