CTPPFR380-PPFR-BK
Art.-No. 169-60105 | CTPPFR380-PPFR-BK |

Copied

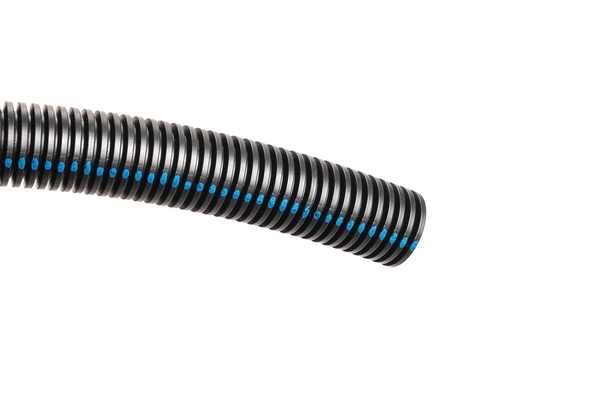

Flame retardant tubing provides full coverage where spiral wrap or other coverings may not be suitable.

    Add to watchlist
    Downloads
    Colour Black with Blue Stripe (BKSTBL)
    Material Polypropylene, flame retardant (PPFR)
    PART DESCRIPTION CTPPFR380-PPFR-BK
    Pack Cont. 548.64m
    Package Content packed in carton
    Type CTPPFR380
    Variant Slit
    ⌀ (D2) 9.65mm
    ⌀ D 0.526"
    ⌀ D2 0.380"
    Diameter (D) 13.36mm
    Inner Diameter D (Imperial) 0.380"
    Inside ⌀ (ID) 9.65mm
    Length (L) 548.6m
    Nominal ⌀ 0.38"
    Nominal ⌀ 9.65mm
    Outside ⌀ (OD) 13.36mm
    Outside ⌀ (OD) 0.526"
    Outside ⌀ (OD2) 0.526"
    Outside ⌀ (OD2) 13.36mm
    Wall (WT) 0.127mm
    Wall (WT) 0.005"
    CE Certification No
    CSA Certified No
    Flammability Self-extinguishing in 60 seconds
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin CA
    GTIN-13 / EAN 4031026739649
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 13.608kg
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
