14/05/2025

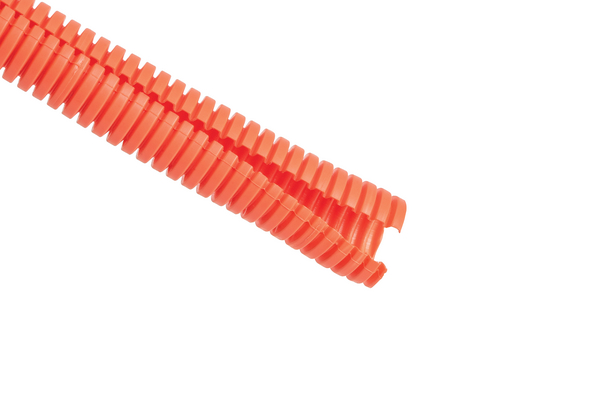

CTPPFR716-PPFR-OG
Art.-No. 169-60122 | CTPPFR716-PPFR-OG |

Copied

    Add to watchlist
    Downloads
    Colour Orange (OG), High Voltage (HV)
    Material Polypropylene, flame retardant (PPFR)
    PART DESCRIPTION CTPPFR716-PPFR-OG
    Pack Cont. 426.72m
    Package Content packed in carton
    Type CTPPFR716
    Variant Slit
    ⌀ (D2) 11.10mm
    ⌀ D 0.597"
    ⌀ D2 0.437"
    Diameter (D) 15.16mm
    Inner Diameter D (Imperial) 0.437"
    Inside ⌀ (ID) 11.10mm
    Length (L) 426.7m
    Nominal ⌀ 7/16"
    Nominal ⌀ 11.13mm
    Outside ⌀ (OD) 15.16mm
    Outside ⌀ (OD) 0.597"
    Outside ⌀ (OD2) 0.597"
    Outside ⌀ (OD2) 15.16mm
    Wall (WT) 0.127mm
    Wall (WT) 0.005"
    CE Certification No
    CSA Certified No
    Flammability Self-extinguishing in 60 seconds
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin CA
    GTIN-13 / EAN 4031026689098
    Packaging 1 - Type carton
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
