09/10/2025

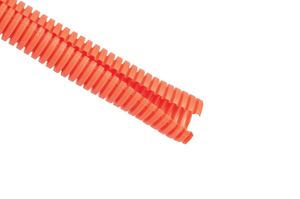

Corrugated tubing, nom⌀16.00mm, OD=21.26mm, ID=16.23mm, orange, 228.6m
Art.-No. 169-60133 | CTPPFRUV580STD-PPFRUV-OG |

Copied

    Add to watchlist
    Downloads
    Colour Orange (OG), High Voltage (HV)
    Material Polypropylene, flame retardant, UV-stabilised (PPFRUV)
    PART DESCRIPTION CTPPFRUV580STD-PPFRUV-OG
    Package Content 228.6m
    Package Content packed in carton
    Type CTPPFRUV580STD
    UV-Stabilised Yes
    ⌀ (D2) 16.23mm
    ⌀ D 0.837"
    ⌀ D2 0.639"
    Bundle ⌀ 1.0-16.2mm
    Bundle ⌀ max. 16.2mm
    Bundle ⌀ min. 1.0mm
    Diameter (D) 21.26mm
    Inner Diameter D (Imperial) 0.639"
    Inside ⌀ (ID) 16.23mm
    Nominal ⌀ 5/8"
    Nominal ⌀ 16.00mm
    Outside ⌀ (OD) 21.26mm
    Outside ⌀ (OD) 0.837"
    Wall (WT) 0.127mm
    Wall (WT) 0.005"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CA
    GTIN-13 / EAN 4031026708058
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    UNSPSC Key 39131601
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
