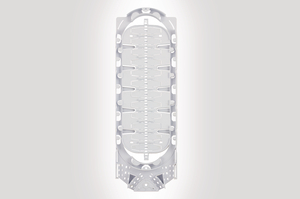

Hellamass Large Splice Tray with ANT Splice Bridges
Art.-No. 857-40303 | TRAY-HL-ANT-01

Bend radius of 375mm
4 large fiber entry ports
Ports allow fiber entry and exit from the same side
Facilitates fiber route reversal
Optical splitter accommodation up to a maximum of 70 x 20 x 60mm
Fiber storage area on reverse side
Different splice protector holder options allow for a splice type of up to 60mm in length
Maximum splice capacity of 144 fibers

More products in this product group:

Content	2 x Hellamass Large Trays, 24 x Crimp (ANT) splice protector holders
PART DESCRIPTION	TRAY-HL-ANT-01
Packaging Type	bag
Part No.	857-40303
Technical Description	The Hellamass Large is a rectangular double sided tray designed for high fibre count multiple applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The tray is supplied with 2 clear plastic cover plates and is mounted using a single pivot point on to a flexible hinge. The overall dimensions of the tray are 440 x 145 x 19mm and the maximum splice capacity of 144 fibres is based on 12 heatshrink 3A splice protector holders fitted to each side of the tray. The Hellamass large tray it is suitable for use in the FML and UFC tubed closures as well as rack mounted applications.
Type	TRAY-HL-ANT-01
