SC-B MKII Splice Trays in Black with 12 3A Moulded Splice Holder Fins
Art.-No. 857-40685 | TRAY-SC-B-MKII-BK-2X3A-12 |

Copied
Single Circuit IR 3A MKII Splice Tray

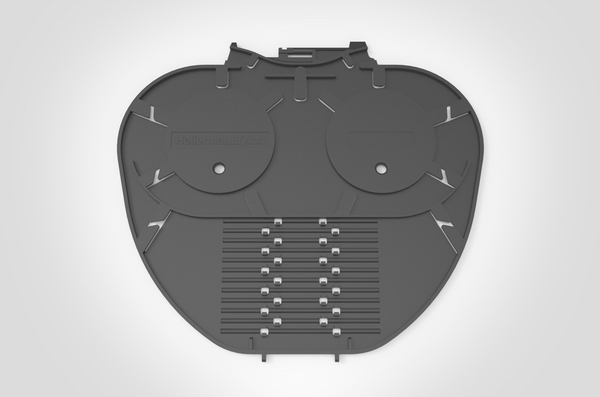

IR Single Circuit SC-B MKII Tray (front view)
IR Single Circuit SC-B MKII Tray (front view)
IR Single Circuit SC-B MKII Tray (top view)

    • Positive fibre management minimum bend radius 15mm
    • 2 fibre entry ports
    • Moulded splice holder fins for heatshrink (3A)
    • Splice holders positioned at the front of the tray for ease of fibre measurement during installation
    • Maximum splice capacity of 12 fibres
    Add to watchlist
    Downloads
    Colour Black (BK)
    Content 12 x IR Single Circuit MKII Black SC-B Heatshrink (3A) Trays
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION TRAY-SC-B-MKII-BK-2X3A-12
    Package Content 12pcs.
    Package Content packed in bag
    Product Family IR Single Circuit SC-B MKII
    Product Group Integrated Routing Fibre Optic Splice Tray
    Qty Trays 12
    Short Description SC-B MKII Splice Trays in Black with 12 3A Moulded Splice Holder Fins
    Technical Description The Integrated Routing (IR) single circuit SC-B MKII tray is
    manufactured from ABS and finished to a high specification to
    eliminate the risk of snagging or microbends.
    All retaining tabs on the tray have radius edges and rounded corners
    where fibre may pass. The overall dimensions of the tray are 150 x
    124 x 3.5mm.
    The IR single circuit tray moulded splice protector holders are
    positioned at the front of the tray for ease of fibre measurement and
    installation.
    The maximum splice capacity of the tray is based on 12 heatshrink
    (3A) splice protectors up to 60mm long. The IR single circuit tray is
    suitable for use in the UFC-IR, FDN-IR or FML-IR closures.
    Type TRAY-SC-B-MKII-BK-2X3A-12
    Type of Tray Integrated Routing SC-B MKII
    Depth (D) 3.5mm
    Height (H) 124mm
    Width (W) 150mm
    ROHS compliant Yes
    Specifications
    Packaging 1 - Height (m) 0.381m
    Packaging 1 - Length (m) 0.254m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.2kg
    ETIM 7.0 Key EC000762
    ETIM 8.0 Key EC000762
    ETIM 9.0 Key EC000762
