29/03/2024

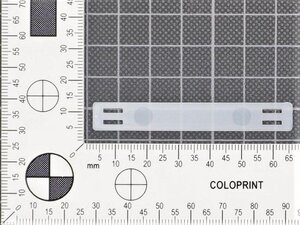

Arrowtag Plate 63x9 mm transparent
Art.-No. 151-41219 | AT2-PA66-NA Details

  • Blank nylon arrowhead shape plate fixed with a cable tie
  • Identify with a T82 pen or Ovalgrip markers
  • AT1 for 7 size 50 Ovalgrip markers
  • AT2 for 8 size 85 Ovalgrip markers
  • AT3 for 14 size 85 Ovalgrip markers
  • Custom printed plaques are available on request
Show more
Application The plates are suitable for applying to larger pipes and cables before or after termination has taken place. They can be marked with Ovalgrip markers or manually using the T82 series of indelible markers pens.
Colour Natural (NA)
Fixation Method Others
Identification Plate Position attached to bundle
Marker tiles per carrier 7
Material Polyamide 6.6 (PA66)

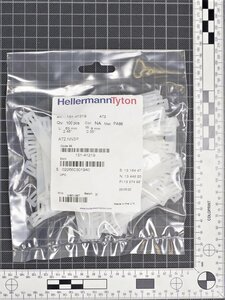

Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION AT2-PA66-NA
Product Family Arrowtag
Product Group Identification ties and plates for marking cable bundles
Recommended Ovalgrip Size 85
Short Description Arrowtag Plate 63x9 mm transparent
Variant Other
With label space Yes
Length (L) 63.0mm
Strap Width max. (G) 6.40mm
Thickness (T) 1.1mm
Weight/Unit 0.000552kg
Width (W) 9.00mm
Width (W2) 6.4mm
Width of printable area (metric) 44.40mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Nato number 9905-12-402-3992
Operating Temperature -40 °C to +85 °C
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660301940
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00054
Packaging 1 - Weight (kg) 0.059kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Width (m) 0.39m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
