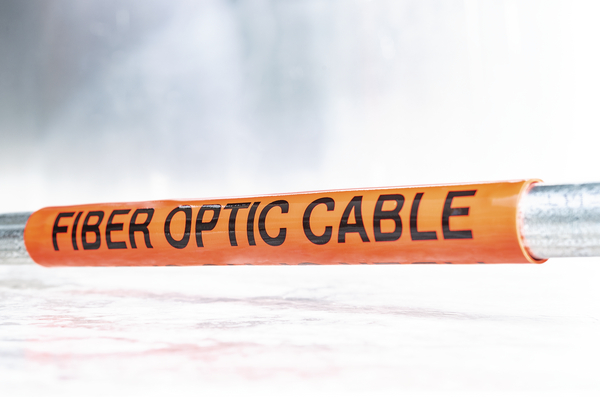

Warning label, pre-printed, W=184.01mm, H=127.00mm, L=71.00mm, orange, pack=25pcs.
Art.-No. 597-00043
| CMF-V-OG
Copied
- Markers are pre-coiled so that they can be snapped into place over the cable without the use of adhesives.
- Non-adhesive design means that the markers can be installed at any temperature or over dirty or oily surfaces.
- Pre-printed text is protected by a thick layer of clear acrylic which provides UV protection and abrasion resistance.
More products in this product group:
| Brand Family | Warning-Series |
| Color | Orange (OG) |
| Description | HellermannTyton's coiled markers are made from heavy duty vinyl and come pre-printed with a standard warning. Custom printing is available - please call for more information. |
| PART DESCRIPTION | CMF-V-OG |
| Packaging Type | pack |
| Part No. | CMFO72 |
| Print Method | manual marking |
| Short Desc. | Fiber Optic Cable Marker, Coiled, 7.25" x 5.0", VL, Orange, 25/pkg |
| Technical Description | Coiled Fiber Optic Marker, 7.25" X 5.0", Orange |
| Type | CMF |
| UV Resistant | Yes |
| Height (imperial) | 5.0" |
| Height (metric) | 127.00mm |
| Horizontal Repeat (imperial) | 3.50" |
| Horizontal Repeat (metric) | 88.90mm |
| Length (imperial) | 2.8" |
| Length (metric) | 71.00mm |
| Max. Bundle Diameter (imperial) | 0" |
| Max. Cable Diameter (imperial) | 1.0" |
| Max. Cable Diameter (metric) | 25.4mm |
| Max. Outside Diameter (imperial) | 1.4" |
| Max. Outside Diameter (metric) | 35.00mm |
| Miin. Cable Diameter (imperial) | 0.49" |
| Min. Bundle Diameter (imperial) | 0" |
| Min. Cable Diameter (metric) | 12.45mm |
| Min. Outside Diameter (imperial) | 0.64" |
| Min. Outside Diameter (metric) | 16.2mm |
| Width (imperial) | 7.25" |
| Width (metric) | 184.01mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | No |
| Material | V |
| Material | Vinyl (V) |
| Operating Temperature | -18°F to +200°F (-29°C to +93°C) |
| Pre-Printed | Yes |
| Prop65 Warning | No |
| REACH Conformity | No |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
