25/04/2024

Hand Writable Labels
Art.-No. 597-00033 | CT1503-PVC-OG Details

  • Clear laminating plastic flap permanently protects the writing and data marked on the tag
  • Mounting holes for easy mounting using standard cable ties
  • Markers can be mounted in any direction, either vertically, horizontally, as a wrap-around identification plate or as a flag for the best visual position on the cable assembly
Colour Orange (OG)
Colour Marking Field Orange (OG)
Colour of Print Black (BK)

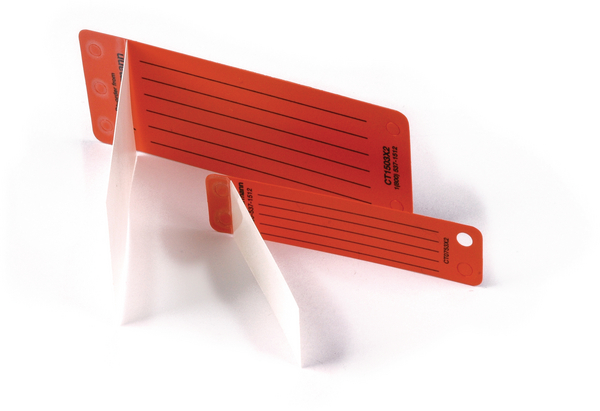

Description HellermannTyton’s Rite-On Markers are made from a flexible vinyl film and used to mark wire and cable. The self-laminating labels have a clear tail which seals the legend under clear vinyl, maintaining the quality of the labels. The Rite-On markers are packaged in a reusable dispenser made from high impact plastic which is resistant to oils and grease.
Material Polyvinylchloride (PVC)
Pack Cont. 25pcs.
Package Content packed in pack
PART DESCRIPTION CT1503-PVC-OG
Product Group Hand Writable Labels

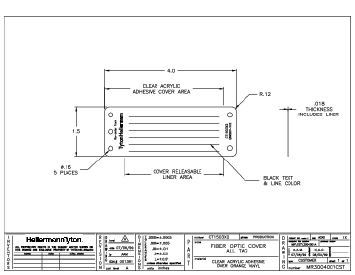

H printable 38.1mm
Height (H) 38.10mm
HR 2.75"
HR 69.85mm
Print Method manual marking
Width (W) 101.60mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +149 °C
CE Certification No
CSA Certified No
Halogen-free No
Operating Temperature -40 °C to +125 °C
Pre-Printed Yes
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin US
GTIN-13 / EAN 4031026727356
Labels per Column 1
Labels per Row 1
Packaging 1 - Weight (kg) 0.22kg
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121511
