Identification Ties
Art.-No. 111-85306 | IT50L-PA66-NA

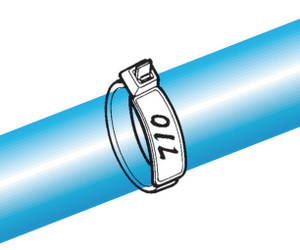

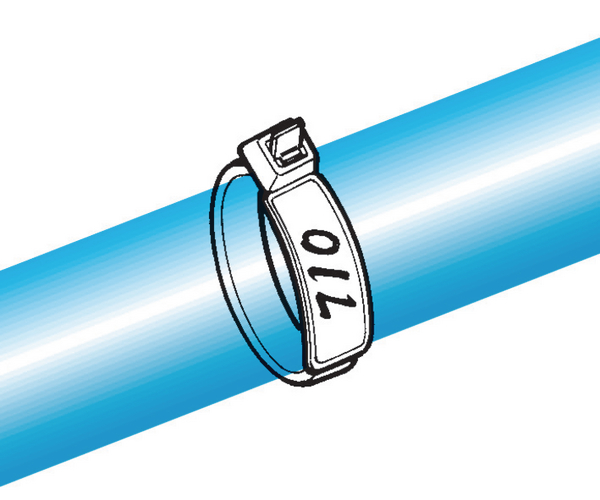

Identification plate feature allows bundles to be easily marked and identified.
Wire and cable harnesses can be secured and identified using just one product, which saves time.
Plates can be marked manually with a permanent marker or with a pre-printed adhesive label.

Package size

100 pcs.

1000 pcs.

More products in this product group:

Application	One of the major benefits is the ability to both secure and identify cable bundles at different times.
Brand Family	IT-Series
Color	Natural (NA)
Description	Identification Cable Ties feature an identification plate that allows wire and cable bundles to be easily marked and identified. These ties enable wire and cables to be secured and identified using just one product, saving installation time. The plates can be marked using a permanent marker or with a HellermannTyton adhesive label.
Key product features	tamper-evident
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	IT50L-PA66-NA
Packaging Type	pack
Part No.	IT50L9M4
Print Method	manual marking
Product family	Identification Systems
Short Desc.	Identification Tie, 15.4" Long, 50lb Tensile Strength, PA66, Natural, 1000/pkg
Type	IT50L
UV Resistant	No


Cable Tie Closure	plastic pawl
Fixation Method	None
Height (imperial)	0.5"
Height (metric)	12.8mm
Identification Plate Position	attached to bundle
Length (imperial)	15.4"
Length (metric)	390.0mm
Max. Bundle Diameter (imperial)	3.94"
Max. Bundle Diameter (metric)	100.0mm
Max. Outside Diameter (imperial)	3.94"
Max. Outside Diameter (metric)	100.00mm
Min. Bundle Diameter (imperial)	0.75"
Min. Bundle Diameter (metric)	19.0mm
Min. Outside Diameter (imperial)	0.75"
Min. Outside Diameter (metric)	19.00mm
Releasable Closure	No
Width (imperial)	2.2"
Width (metric)	56.0mm
Width 2 (imperial)	0.19"
Width 2 (metric)	4.7mm
