PVPSSNAP72-V-RD : PVPSSNAP72

Article number: 596-00208

Features

• Pre-Printed Solar Labels are made using high performance UV stable materials and adhesives for long outdoor life.
• Designed to meet NEC and IFC standards for PV installation labeling, the pre-printed Solar labels come printed with the most common legends required by the AHJ (Authority Having Jurisdiction) used on large utility and scaled projects to ensure code compliance during inspection.
• Labels are UV stable and made with special high bond adhesives to stick to both powder coat painted surfaces and baked enamel surfaces found on most disconnect switches and breaker boxes.
• The printed inks meet the fire safety standards of the IFC (International Fire Code) and also meet the requirements of UL969 for high reflectivity and durability.

Certifications & Approvals

Colour Red (RD)
Colour of Print White (WH)

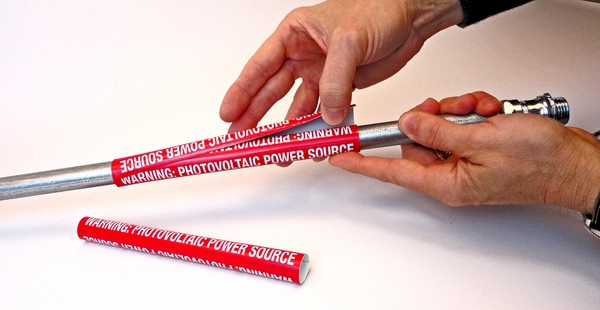

Description These Solar Circuit Markers are preprinted, non-adhesive, and coiled to be opened and snapped over cables for long-term, reflective, permanent identification. Made of a UV stable vinyl, the coiled markers come 25 per bag and will fit on all standard PV cables or electrical metallic tubing (EMT) conduits.
Pack Cont. 25
Package Quantity per pack
PART DESCRIPTION PVPSSNAP72-V-RD

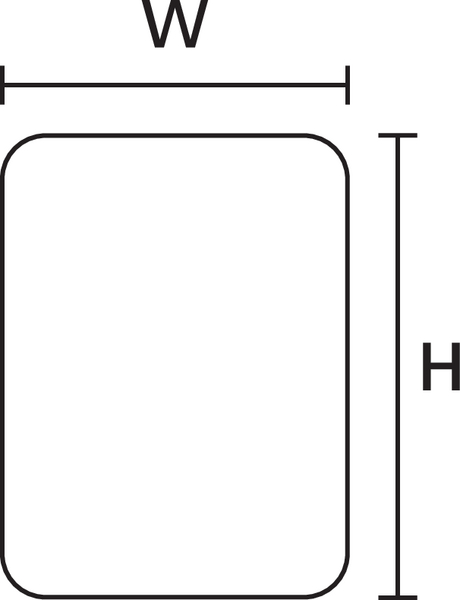

Height (H) 127.0mm
Width (W) 184.15mm
Halogenfree No
Material Vinyl (V)
Operating Temperature - °C -29 °C to +93 °C
Specifications
Specifications IFC 2012, NEC2011, NEC2014, NEC2017, UL 969
Packaging 1 - Weight (kg) 0.074kg
Weight 0.16lbs
Weight 0.074kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121704
