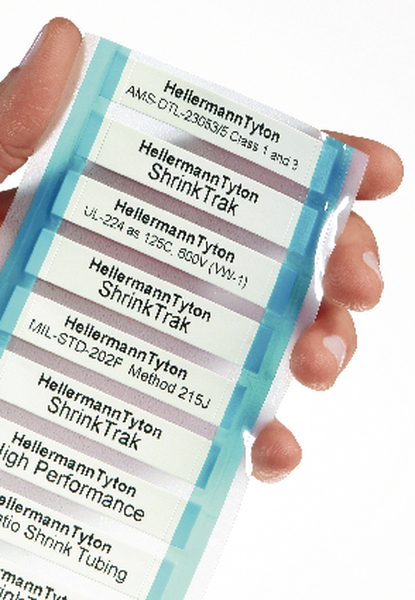

Shrinkable Wire Markers: "Ladder Style", thermal transfer Shrink Track sample pack

ShrinkTrak, Article number: 553-50091

Features

The markers are side slit for easy removal from the liner. A smooth and flat heatshrink surface ensures consistent printing. Ribbon waste is greatly reduced by the reduction in space between markers. Trouble free printing of ShrinkTrak is possible through most thermal transfer printers.

Certifications & Approvals

Application Tool TT430, TT4030
Colour White (WH)
Features and Benefits ShrinkTrak's efficient and high performance design lowers costs and installation time. ShrinkTrak's ribbon saving feature ensures that print job costs are kept to a minimum by minimising ribbon usage and increasing marker output. The marker’s carrier strip also reduces installation time by simplifying the steps needed to apply markers. Simply split the side of the liner to expose the marker opening, insert the wire, and lift.
GLOBAL PART DESCRIPTION Shrink Track sample pack-PO-X-WH
Package Quantity per pack
Product Family ShrinkTrak
Product Group Shrinkable Wire Markers: "Ladder Style", thermal transfer
Short Description Thermal transfer printable flat heat shrink tubing
Variant Thin-Wall
Flexibility Flexible
Height (H) 25.4mm
Length (L) 25.4mm
Print Method Thermal transfer
Thickness (T) 3.0µm
Width of Liner (WL) 76.2mm
Abrasion Resistance Medium
Dielectric Strength 19.7 kV min.
Material Polyolefin, cross-linked (PO-X)
Specifications
ETIM 5.0 EC000217
ETIM 6.0 EC000217
UNSPSC Key 39131502
