Cable label, self laminating, white/transparent, laser print, 38.10x25.40mm, H2=142.00mm, 700pcs.
Art.-No. 594-14175
| TAG141LA4-750-WHCL-750-CL/WH
Copied
This product is not available anymore.
- High-quality self laminating labels
- Suitable for marking of wires and cables
- Laminating function gives excellent protection against humidity and mechanical abrasion
- Rounded edge design gives addtional bonding strength
- Thicker material (50micron) for longer labels
- Simple and efficient label design and printing with TagPrint Pro labelling software
- MS Word templates available from www.hellermanntyton.com for those wishing to use MS Word
More products in this product group:
| Application |
A specially developed material for use in labels required to wrap around cables and wires. The conformable structure of the label ensures that once the label is applied to the wire it remains in place without lifting. The rounded edge construction gives additional bonding features not found in straight edge label designs. The information is printed onto the white inscription area. The printed information area is placed onto the wire and the transparent tail is wrapped around the wire and covers the text; this gives excellent protection from abrasion, dust, and debris. TagPrint Pro labelling program comes pre-loaded with all our labels. Designing labels is simply done; just choose inbuilt graphics or download your own, and add data from ERP system or standard office programs such as Excel. Barcodes are created in a couple of clicks. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | resistant to oils and water, removable without residue |
| Colour | White (WH), Transparent (CL) |
| Colour Marking Field | White (WH) |
| Fixation Method | Stick |
| Material | Type 750, super-transparent Polyester, white (750) |
| PART DESCRIPTION | TAG141LA4-750-WHCL-750-CL/WH |
| Package Content | 700pcs. |
| Package Content packed in | pcs. |
| Paper Format | A4 |
| Print Method | laser print |
| Print Method (Alternative) | laser beam print |
| Product Family | Helatag 750 (White-Transparent) |
| Product Group | Self-laminating labels, laser |
| Self adhesive (Yes/No) | Yes |
| Type | TAG141LA4-750-WHCL |
| Variant | Adhesive label |
| With label space | Yes |
|
|
|

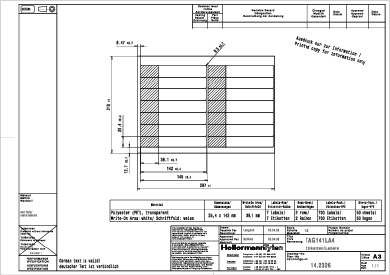

| Bundle ⌀ | 16.50-33.10mm |
| Bundle ⌀ max. | 33.10mm |
| Bundle ⌀ min. | 16.50mm |
| Height (H) | 38.10mm |
| Height (H2) | 142.00mm |
| Outside ⌀ max (OD max.) | 33.10mm |
| Outside ⌀ min. (OD min.) | 16.5mm |
| Thickness (T) | 50.0µm |
| Thickness of Adhesive (TA) nom. | 22.5µm |
| Thickness of Foil | 50 |
| Thickness of foil test method | ASTM D3652-83 |
| VR | 145.00mm |
| Width (W) | 25.40mm |
| Width of Liner (WL) | 210.00mm |
Download
| Adhesive | Acrylic |
| Curing Temperature | from +5 °C |
| Halogen-free | Yes |
| Initial tack | 125g/cm² |
| Initial tack | ASTM D2979-71 |
| Operating Temperature | -40 °C to +150 °C |
| Peel strength | 900 N/m |
| Peel strength test method | PSTC 7 |
| ROHS compliant | Yes |
| Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
| Specifications |
|
| Country of Origin | DE |
| GTIN-13 / EAN | 4031026200057 |
| Labels per Row | 7pcs. |
| Labels per Sheet | 14pcs. |
| Packaging 1 - Height (m) | 0.002m |
| Packaging 1 - Length (m) | 0.031m |
| Packaging 1 - Qty | 700 |
| Packaging 1 - Volume (m³) | 0.000001426m³ |
| Packaging 1 - Weight (kg) | 0.0010kg |
| Packaging 1 - Width (m) | 0.023m |
| Sheets per Pack | 50pcs. |
| Storage Temperature | +21 °C |
| Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
