TAG22-100-WH : TAG22

Article number: 595-22100

Certifications & Approvals

Application

Used in applications where low to medium print volumes are needed and where simple alphanumeric texts are required.

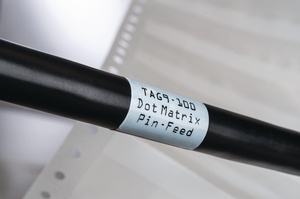

HellermannTyton self laminating wire markers can be used in industries ranging from automotive for wire and pipe identification to electrical panels.
For problem-free printing, we recommend our easy to use windows based TagPrint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately.
The labels are supplied in a protective box that ensures dirt and dust is kept away from your labels so ensuring less waste.

Colour White (WH)
Colour Marking Field White (WH)
Fixation Method Pasting / Stick
Mounting method Pasting / Stick
Pack Cont. 5000
Package Quantity per pack
PART DESCRIPTION TAG22-100-WH
Self adhesive (Yes/No) Yes
Variant Adhesive label
With label space Yes

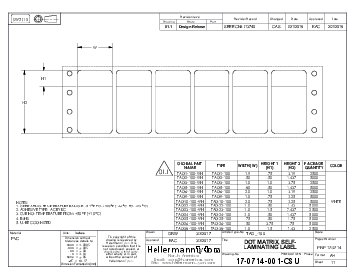

Bundle ∅ max. 7.60mm
Bundle ∅ min. 3.80mm
Core diameter from / to 3.8 - 7.60mm
H printable 12.70mm
Height (H2) 36.58mm
HR 1.0"
HR 25.4mm
Outside ∅ max. 0.29"
Outside ∅ max (OD max.) 7.60mm
Outside ∅ min. 0.14"
Outside ∅ min. (OD min.) 3.8mm
Print Method Dot-matrix
Thickness (T) 75.0µm
Thickness of Foil 75µm
VR 38.10mm
VR 1.5"
Width (W) 25.4mm
Width of LIner (WL) 8.9"
Width of Liner (WL) 228.60mm
Adhesive Acrylic
Adhesive Operating Temperature -46 °C to +93 °C
CSA Certified No
Curing Temperature from +10 °C
Halogenfree No
Material Type 100, Vinyl (PVC), white (WH), self-laminating
Operating Temperature - °C -46 °C to +93 °C
Specifications
Specifications UL-Recognized
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH18396 [RU]
EAN / GTIN 4031026175393

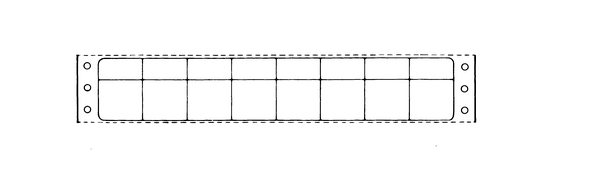

Labels per Column 8
Labels per Row 8
Labels per Sheet 64
Packaging 1 - Qty 5000
Packaging 1 - Weight (kg) 0.4000kg
Packaging 2 - Qty 1
Packaging 3 - Qty 5000
Packaging 4 - Length (m) 1.20m
Packaging 4 - Type pallet
Packaging 4 - Width (m) 0.80m
Weight 0.17lbs
Weight 0.08kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121612
