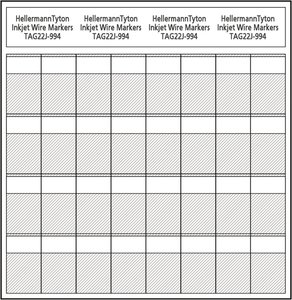

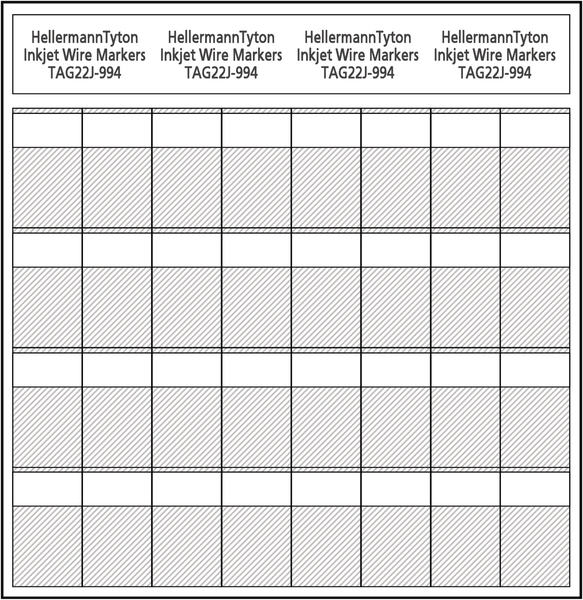

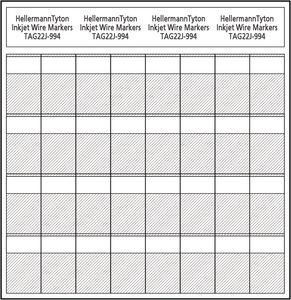

TAG22J-994-WH : TAG22J

Article number: 593-22994

Certifications & Approvals

Colour White (WH)
Colour Marking Field White (WH)
For Wire Type 4 Pair UTP / RG6 & RG59 Coax
Pack Cont. 1000
Package Quantity per pack
Paper Format Letter
PART DESCRIPTION TAG22J-994-WH
Bundle ∅ max. 8.00mm
Bundle ∅ min. 3.80mm
Core diameter from / to 3.8 - 8.00mm
H printable 12.7mm
Height (H2) 36.32mm
HR 25.40mm
HR 1.000"
Outside ∅ max. 0.315"
Outside ∅ max (OD max.) 8.00mm
Outside ∅ min. 0.15"
Outside ∅ min. (OD min.) 3.8mm
Print Method Inkjet
Thickness (T) 35.0µm
VR 1.43"
VR 36.32mm
Width (W) 25.4mm
Width of Liner (WL) 215.00mm
Width of LIner (WL) 8.5"
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CSA Certified No
Curing Temperature +10 °C
Halogenfree No
Material Type 994, Polyethylene Terephthalate (PET)
Operating Temperature - °C -40 °C to +150 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
Labels per Column 4
Labels per Row 8
Labels per Sheet 32
Packaging 1 - Weight (kg) 0.521kg
Sheets per Pack 32
Weight 1.14lbs
Weight 0.521kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121612
