23/05/2025

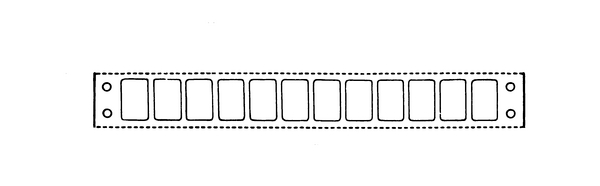

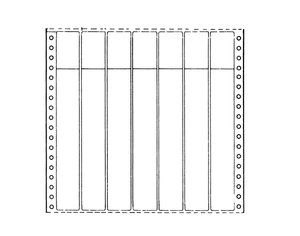

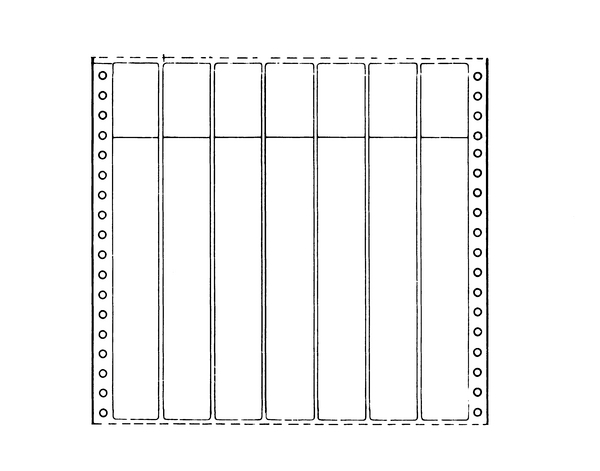

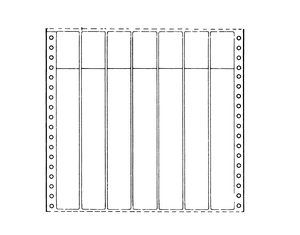

Cable label, self laminating, white, dot-matrix print, 12.70x25.4mm, H2=188.98mm, 2500pcs.
Art.-No. 595-38100 | TAG38-100B-WH |

Copied
A self laminating transparent vinyl material with acrylic adhesive. Write on area is white.

    This product is not available anymore.
    Add to watchlist
    Downloads
    Application Used in applications where low to medium print volumes are needed and where simple alphanumeric texts are required.
    HellermannTyton self laminating wire markers can be used in industries ranging from automotive for wire and pipe identification to electrical panels.
    For problem-free printing, we recommend our easy to use windows based TagPrint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately.
    The labels are supplied in a protective box that ensures dirt and dust is kept away from your labels so ensuring less waste.
    Colour White (WH)
    Colour Marking Field White (WH)
    Fixation Method Pasting / Stick
    Material Type 100B, Vinyl, white transparent, self-laminating (100B)
    PART DESCRIPTION TAG38-100B-WH
    Pack Cont. 2500pcs.
    Package Content packed in pack
    Self adhesive (Yes/No) Yes
    Type TAG38
    Variant Adhesive label
    With label space Yes
    Bundle ⌀ 24.00-48.00mm
    Bundle ⌀ max. 48.00mm
    Bundle ⌀ min. 24.00mm
    H printable 38.10mm
    HR 27.94mm
    HR 1.10"
    Height (H) 12.70mm
    Height (H2) 188.98mm
    Length (L) 188.9mm
    Outside ⌀ max (OD max.) 48.00mm
    Outside ⌀ max. 1.88"
    Outside ⌀ min. 0.94"
    Outside ⌀ min. (OD min.) 24mm
    Print Method dot-matrix print
    Thickness (T) 75.0µm
    Thickness of Foil 75
    VR 7.5"
    VR 190.50mm
    Width (W) 25.4mm
    Width of LIner (WL) 8.4"
    Width of Liner (WL) 213.36mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +150 °C
    Curing Temperature from +10 °C
    Halogen-free No
    Operating Temperature -46 °C to +93 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    UL Recognized (US) Yes
    Country of Origin US
    Labels per Column 7
    Labels per Row 7
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 39131504
