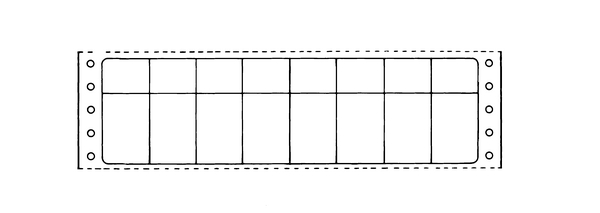

Cable label, self laminating, white/transparent, dot-matrix print, 25.4mm, H2=57.20mm, 5000pcs.
Art.-No. 595-09100 | TAG9-100B-CL/WH Details

Application Used in applications where low to medium print volumes are needed and where simple alphanumeric texts are required. HellermannTyton self laminating wire markers can be used in industries ranging from automotive for wire and pipe identification to electrical panels. For problem-free printing, we recommend our easy to use windows based TagPrint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately. The labels are supplied in a protective box that ensures dirt and dust is kept away from your labels so ensuring less waste.
Colour White (WH), Transparent (CL)
Colour Marking Field White (WH)
Fixation Method Pasting / Stick
Material Type 100B, Vinyl, white transparent, self-laminating (100B)
Pack Cont. 5000pcs.
Package Content packed in pack
PART DESCRIPTION TAG9-100B-CL/WH
Self adhesive (Yes/No) Yes
Variant Adhesive label
With label space Yes
Bundle Diameter max (metric) 12.10mm
Bundle ∅ 6.10-12.10mm
Bundle ∅ min. 6.10mm
H printable 19.00mm
Height (H2) 57.20mm
HR 1.0"
HR 25.40mm
Outside ∅ max (OD max.) 12.10mm
Outside ∅ max. 0.47"
Outside ∅ min. 0.24"
Outside ∅ min. (OD min.) 6.1mm
Print Method dot-matrix print
Thickness (T) 75.0µm
Thickness of Foil 75µm
VR 63.50mm
VR 2.5"
Width (W) 25.4mm
Width of LIner (WL) 8.9"
Width of Liner (WL) 228.60mm
Adhesive Acrylic
Adhesive Operating Temperature -46 °C to +93 °C
CE Certification No
CSA Certified No
Curing Temperature from +10 °C
Halogen-free No
Operating Temperature -46 °C to +93 °C
Specifications
Specifications UL-Recognized
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number MH18396
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026175164
Labels per Column 8
Labels per Row 8
Labels per Sheet 64
Packaging 1 - Qty 5000
Packaging 1 - Weight (kg) 1.9500kg
Packaging 2 - Qty 1
Packaging 3 - Qty 5000
Packaging 4 - Length (m) 1.20m
Packaging 4 - Type pallet
Packaging 4 - Width (m) 0.80m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121612
