TAG9J-994-WH : TAG9J

Article number: 593-09994

Certifications & Approvals

Colour White (WH)
Colour Marking Field White (WH)
For Wire Type 4 Pair UTP / STP / 25 Pair Copper / 4-12 Pair Fiber
Pack Cont. 1000
Package Quantity per pack
Paper Format Letter
PART DESCRIPTION TAG9J-994-WH
Bundle ∅ max. 11.60mm
Bundle ∅ min. 5.80mm
Core diameter from / to 5.8 - 11.60mm
H printable 19.06mm
Height (H2) 57.15mm
HR 25.40mm
HR 1.000"
Outside ∅ max. 0.45"
Outside ∅ max (OD max.) 11.60mm
Outside ∅ min. 0.22"
Outside ∅ min. (OD min.) 5.8mm
Print Method Inkjet
Thickness (T) 35.0µm
VR 2.25"
VR 57.17mm
Width (W) 25.4mm
Width of Liner (WL) 215.00mm
Width of LIner (WL) 8.5"
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +80 °C
CSA Certified No
Curing Temperature +10 °C
Halogenfree No
Material Type 994, Polyethylene Terephthalate (PET)
Operating Temperature - °C -40 °C to +150 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No

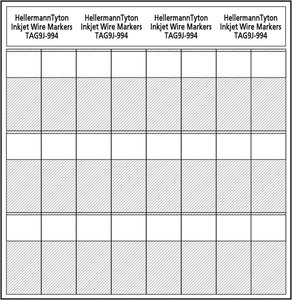

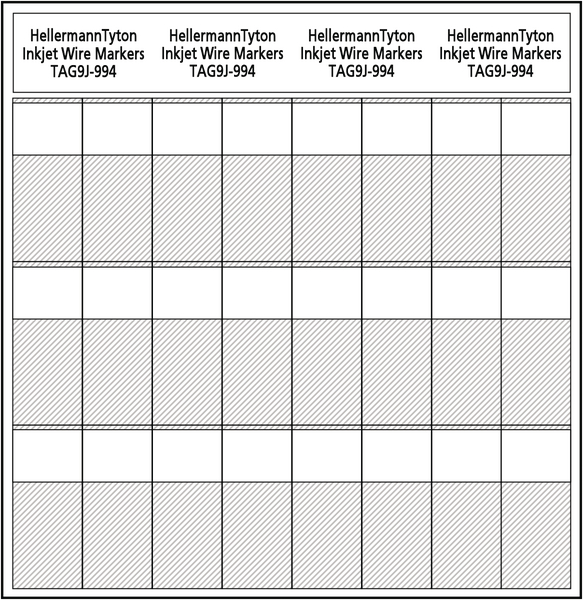

Labels per Column 3
Labels per Row 8
Labels per Sheet 24
Packaging 1 - Weight (kg) 0.521kg
Sheets per Pack 42
Weight 1.14lbs
Weight 0.521kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121612
