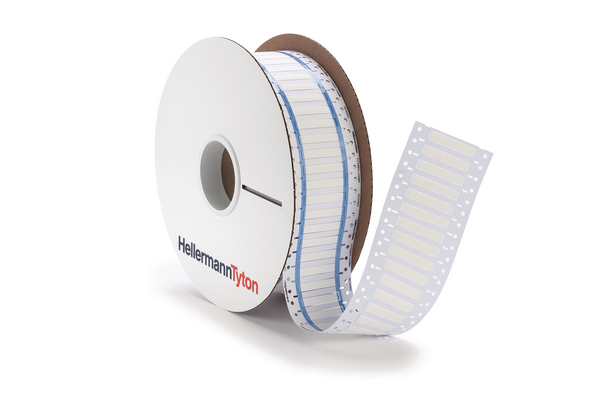

Heat shrink marker, halogen free/UV resistant, thermal transfer print, ladder-style, 3.2mm/1.6mm, W=16.0mm, white, 15000pcs.
Art.-No. 553-60040 | TLFX32DS-3x16WH-PO-X-WH

TLFX DS - shrinkable markers available in yellow or white.

Shrinkable rail approved markers TLFX DS.

TT4030DS, our latest high performance double sided thermal transfer printer.

Halogen free, for low smoke propagation, density and toxicity.
50 mm, 25 mm and 16 mm pre-cut marker options as standard, for ability to get multiple labels out of one tag.
Delivery in convenient storage boxes for protection.

Package size

3000 pcs.

15000 pcs.

Add to watchlist

Downloads e-Learning

More products in this product group:

Shrinkable markers "Ladder Style", thermal transfer >

Base Data

Application	TLFX DS is a halogen free European rail approved 2:1 heat shrink marker material supplied pre-cut and formatted into a convenient "ladder" system. Special material properties show low smoke propagation, density and toxicity. This pre-cut format not only allows printing on both sides of the marker but the user can also easily choose and pick each required marker. Special material properties show low smoke propagation, density and toxicity. The tubing has been especially prepared so that the print performance is excellent at all times using HellermannTyton's printer range.
Behaviour at low Temperature test method	ASTM D2671
Brand Family	TLFX DS
Color	White (WH)
Description	ShrinkTrak DS is a halogen-free, double-sided heat shrinkable marker with a 2:1 shrink ratio. HellermannTyton’s unique ladder-style design assists in removing markers off the carrier. The side slits have been designed to ensure the wire entry gap is as large as possible while remaining on the carrier strip, enabling the user to quickly insert wire and cable into the marker. For a complete labeling solution, ShrinkTrak DS can be printed using HellermannTyton’s TagPrint® Pro professional label creation software and thermal transfer printers. For double-sided printing, HellermannTyton’s TrakMark DS double-sided printer produces excellent results. Choose among multiple ribbon types to create a permanent print that resists most solvents when shrunk and applied.
Heat Aging Test	168h/150°C
Heat Aging test method	ASTM D638
Heat Shock Test	4h/175°
Key product features	halogen free, UV resistant, flame retardant, chemical resistance
PART DESCRIPTION	TLFX32DS-3x16WH-PO-X-WH
Packaging Type	pack
Part No.	553-60040
Print Method	thermal transfer print
Print Method (Alternative)	laser beam print
Short Desc.	ShrinkTrak Labels, 2-Sided, 2-Slit, Halogen Free, 0.63" x .24", Polyolefin, White, 15,000/pkg
Type	TLFX32DS-3x16WH
UV Resistant	No

Product Dimensions


Fixation Method	Suspend
Height (imperial)	0.23"
Height (metric)	6.0mm
Liner Width (imperial)	3.50"
Liner Width (metric)	88.9mm
Longitudinal Change After Shrinkage	-5% max.
Longitudinal Change After Shrinkage	UL 224
Max. Bundle Diameter (imperial)	0"
Max. Outside Diameter (imperial)	0.12"
Max. Outside Diameter (metric)	3.04mm
Min. Bundle Diameter (imperial)	0"
Printable	Yes
Printable Area Height (imperial)	.23"
Printable Area Height (metric)	6.0mm
Printable Area Width (imperial)	.63"
Printable Area Width (metric)	16.00mm
Recovered Diameter (imperial)	0.062"
Recovered Diameter (metric)	1.6mm
Shrink Ratio	2:1
Supplied Diameter (imperial)	0.125"
Supplied Diameter (metric)	3.2mm
Thickness (imperial)	.0130"
Thickness (metric)	.29mm
Vertical Repeat (imperial)	.61"
Vertical Repeat (metric)	15.9mm
Volume Resistance	10¹⁴ Ω cm
Wall Thickness (imperial)	0.025"
Wall Thickness (metric)	0.635mm
Width (imperial)	0.63"
Width (metric)	16.0mm

Downloads

Material and Specifications

CE Certification	No
CSA Certified	No
Dielectric Strength	20kV/mm
Dielectric Strength test method	ASTM D2671
EN 45545-2 Results	R22 HL3, R23 HL3
Elongation at break (min.)	200%
Elongation at break test method	ASTM D2671
Flammability	UL 224
Halogen Free	Yes
Material	PO-X
Material	Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature	+212 °F (+100 °C)
Operating Temperature	-67°F to +221°F (-55°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
Reel Variant	ladder-style
Smoke density	44Ds (max)
Smoke density test method	ISO 5659-2
Test Method Tensile Strength	ASTM D2671
Toxicity index	0.03CITg
Toxicity index test method	EN 17084
US MILSPEC	MIL-STD-202J, SAE AS5942 3.4.1
Volume Resistance test method	ASTM D257

Logistic and Packaging

Customs Number	3917320000
Harmonized Tariff Schedule Code	3917.32
Packaging 1 - Weight (kg)	2.900001kg
Pkg. Qty.	15000
Pkg. Qty.	15000Pieces
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
