Shrinkable markers "Continuous Tube", thermal transfer : TULT4.8-1.6YE

Shrinkable Marker 3:1 (4,8/1,6 mm), UL-recognized, printable, yellow, 110m/box = 5 reels, Article number: 553-40450

Features

  • Shrink ratio 3:1

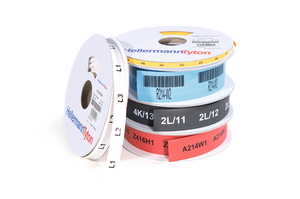

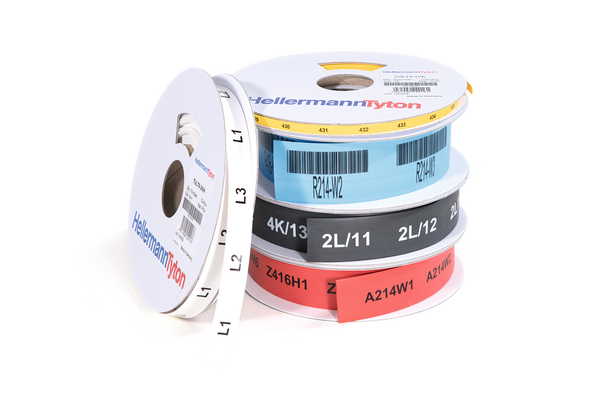

  • Available in black, blue, red, white and yellow
  • Cable range from 39 mm to 1 mm
  • Good mechanical strength and resistance to organic solvents and chemicals
  • Highly flexible
  • Delivery in convenient storage boxes

Certifications & Approvals

Application

TULT is a UL recognized 3:1 heat shrink marker material supplied as a continuous tube and printable on both sides. TULT’s polyolefin compound has good mechanical strength and resistance to organic solvents and chemicals. The surface of the tubing has been especially prepared so that print performance is excellent at all times. HellermannTyton's printer range allow users to create a high quality print. In addition it is possible to either perforate the tubing at pre-determined lengths or fully sever the markers.

TULT – 3:1 Military and Electronics is suitable for following markets and industries

Application Tool H6100, TT431, TT431-BV, TT4030, TrakMark DS
Colour Yellow (YE)
Pack Cont. 110m
Package Quantity per box
PART DESCRIPTION TULT4.8-1.6YE-PO-X-YE
Printable (Yes/No) Yes
Product Family TULT – 3:1 Military and Electronics
Product Group Shrinkable markers "Continuous Tube", thermal transfer
Short Description Shrinkable Marker 3:1 (4,8/1,6 mm), UL-recognized, printable, yellow, 110m/box = 5 reels
Shrink Ratio 3:1
Variant Thin-Wall
With inner glue (Yes/No) No
Length (L) 11.0m
Longitudinal Change After Shrinkage -15 % max.
Print Method Thermal transfer or laser beam
Recov. ∅ d max. 1.6mm
Supplied ∅ D min. 4.8mm
Wall (WT) 0.65mm
CSA Certified Yes
Dielectric Strength 37 kV/mm
ELV compliant (Article 4 - 2) YES
Flammability UL 224 VW-1
Halogenfree No
Hazardous good No
Insulation Class B (VDE 0530)
Material Polyolefin, cross-linked (PO-X)
Min. Shrink Temperature - °C +90 °C
Operating Temperature - °C -55 °C to +135 °C
Recommended Ribbon Type TTRC+, TTDTHOUT, TTRW, TT822OUT8
Specifications
Specifications ANSI/UL 224, C22.2 no. 198.1-99
UL OCD link YDPU8.E143529
YDPU2.E143529
UL-File Number E143529
EAN / GTIN 4031026541440
Packaging 1 - Height (m) 0.013m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 22
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00033
Packaging 1 - Weight (kg) 0.15939kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.168m
Packaging 2 - Length (m) 0.168m
Packaging 2 - Qty 110
Packaging 2 - Type pack
Packaging 2 - Volume (m³) 0.0031
Packaging 2 - Weight (kg) 0.89995kg
Packaging 2 - Width (m) 0.11m
Weight 0.15939kg
ETIM 6.0 EC000217
ETIM 7.0 Key EC000217
