Accessory for WIC1, WIC2, WIC-Series, black, 100pcs. (WICA-AC10-25)
Art.-No. 561-06001 | WICA-AC10-25-PA66HIRHS-BK

Copied
Application The WIC range includes three accessories designed to make cable identification quicker, cleaner, and more reliable than ever – even with high-diameter cables.

WIC Tool: A universal application tool for inserting WIC markers with speed and precision. Simply load, slide, and twist.
WICA-AC 10-25 for Snap-On Support: Designed for cables from 10 to 25 mm², this accessory securely clips onto the cable and holds up to 8 markers for clear and organized identification.

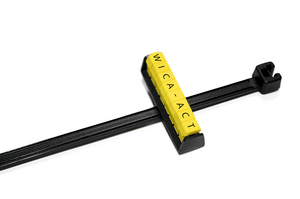

WICA-ACT for Tie-On Application: Ideal for larger cables, this version is secured with a cable tie (included) to provide maximum flexibility and stability.
Application Method Applying the markers can be done either by hand or with the ergonomically designed applicator tool.
Simply snap the marker onto the wire, twist, and then reapply next required marker.
Colour Black (BK)
Description Snap-on accessory
Fixation Method snap-on
Marker tiles per carrier 8
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION WICA-AC10-25-PA66HIRHS-BK
Pack Cont. 100pcs.
Package Content packed in box
Print Method inkjet print
Product Family WIC, snap on
Product Group Pre-printed cable markers
Short Description Clip On cable Adapter 5.5-9.5 mm with up to 8 markers
Type WICA-AC10-25
Variant Other
With label space No
Bundle ⌀ 5.50-9.50mm
Bundle ⌀ max. 9.50mm
Bundle ⌀ min. 5.50mm
Height (H) 19.4mm
Length (L) 25.8mm
Weight/Unit 0.000708kg
Width (W) 13.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications EN 60062, IEC 304
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026568324
Packaging 1 - Height (m) 0.062m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 100
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.00059644
Packaging 1 - Weight (kg) 0.096kg
Packaging 1 - Width (m) 0.052m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
