20/02/2026

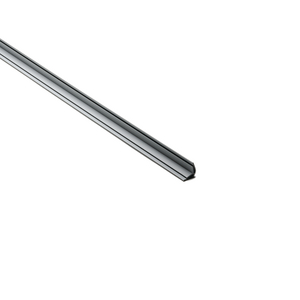

Accessory, grey, 5m (DCS500)
Art.-No. 181-00051 | DCS500-PVC-GY

Copied
Wiring duct 90° joint of HD series.

    • Easily cut to size for the appropriate duct size.
    • Provides a smooth transition between sections of duct.
    Add to watchlist
    Downloads
    Application Straight and 90° accessories to connect Heladuct HD wiring ducts are supplied in 0.5 meter bars. These bars can be cut during the application in the necessary length for each wiring duct size.
    Color Gray (GY)

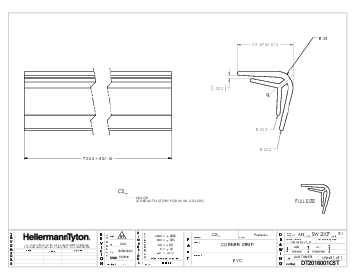

    Description HellermannTyton’s Wiring Duct Connectors include corner strips and straight connectors. Corner strips are used for a rounded and smoother transition between sections of wiring duct meeting at a right angle whereas straight connectors join straight duct runs to cover and protect wires. Straight connectors are supplied in 6 foot lengths, can be used with all sizes of duct, and can be cut to fit duct sidewall heights.
    PART DESCRIPTION DCS500-PVC-GY
    Packaging Type bag
    Type DCS500
    Length (metric) 500.0mm
    Width (metric) 12.0mm
    Flammability UL 94 V-0
    Material Polyvinylchloride (PVC)
    Material PVC
    Operating Temperature -4°F to +158°F (-20°C to +70°C)
    ROHS compliant Yes
    Pkg. Qty. 5m

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
