Flexible cable support 34x36 mm, 500 mm, PP, white, for screwing or gluing
Art.-No. 164-31108 | HelaDuct Flex30SK-PP-WH

Highly flexible design saves space and allows bending at angles above 90 degrees, making it well suited for confined spaces.
Overlapping circular fingers eliminate need for a separate cover to retain wires and make insertion and removal of wires fast and easy.
Smooth finger edges eliminate abrasion that can damage wires.
Slotted finger pattern provides easy visibility to wires and allows heat to dissipate.

Package size

8 pcs.

40 pcs.

More products in this product group:

Application	HelaDuct flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.
Brand Family	HelaDuct
Color	White (WH)
Description	HelaDuct Flex provides an extremely flexible method of routing wires in restricted-space applications. Smooth, overlapping, circular finger pattern reduces wire abrasion and eliminates the need for a separate cover in order to maintain wires when installed at angles greater than 90 degrees. Quick and easy inspection, access and removal of wires reduces installation and maintenance time. Available with adhesive foam strip for temporary positioning or non-adhesive back.
PART DESCRIPTION	HelaDuct Flex30SK-PP-WH
Packaging Type	pack
Part No.	164-31108
Short Desc.	HelaDuct Flex30SK Wiring Duct, 1.18" Dia., 19.7" Length, Adhesive, PP, White, 40/ctn
Type	HelaDuct Flex30SK
UV Resistant	No

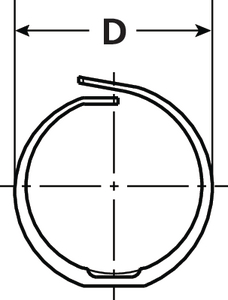

Diameter (imperial)	1.18"
Diameter (metric)	30mm
Fixation Method	Screw Mounting and Adhesive
Height (imperial)	1.42"
Height (metric)	36.0mm
Inner Diameter (imperial)	1.18"
Inner Diameter 2 (metric)	30.0mm
Length (imperial)	19.7"
Length (metric)	500mm
Max. Bundle Diameter (imperial)	0"
Min. Bundle Diameter (imperial)	0"
Nominal Diameter (imperial)	1.18"
Nominal Diameter (metric)	30mm
Width (imperial)	1.34"
Width (metric)	34.0mm
Width 2 (imperial)	0.19"
Width 2 (metric)	5.0mm
Width 3 (imperial)	0.31"
Width 3 (metric)	8.0mm

Adhesive	Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature	-4°F to +158°F (-20°C to +70°C)
CE Certification	Yes
CSA Certified	Yes
Flammability	UL 94 V-0 (excluding adhesive)
Halogen Free	Yes
Material	PP
Material	Polypropylene (PP)
Operating Temperature	-4°F to +158°F (-20°C to +70°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL File Number [Logo]	E64139 [cRUus]
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	Yes
UL Recognized (US)	Yes


Customs Number (Schedule B)	3925900000
Harmonized Tariff Schedule Code	3925.90.0000
Pkg. Qty.	40
Pkg. Qty.	40Pieces
