For mounting prior to wiring HTWD-BWR-40X60

HelaDuct HTWD-BWR wire retainers, Article number: 181-50460

Features

  • Quickly and easily fastend on raised mounting points with a 1/4 turn of a screwdriver
  • Wires easily inserted and firmly held in place
  • Anchor of retainer remains inside raised mounting point and does not protrude below surface of duct base
  • Reduces strain on duct fingers especially at corners and eliminates bulging against sidewall
  • Available for all duct sizes of width and height larger than 40
  • Fits snuggly in duct for minimal loss of installation space

Certifications & Approvals

Application

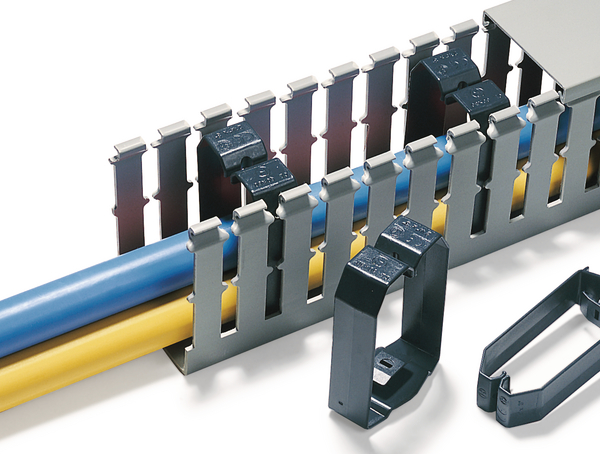

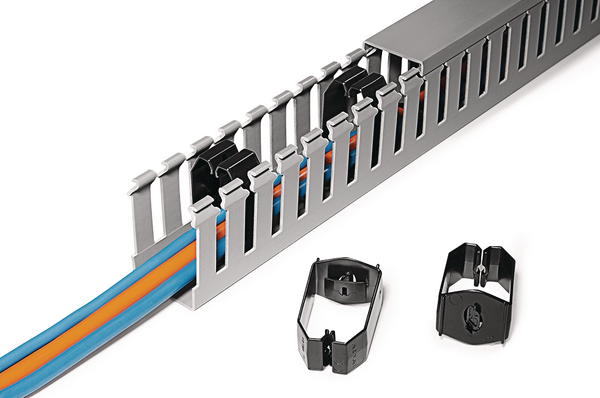

HelaDuct HTWD-BWR are anchored securely on the raised mounting points of HTWD-PN and HTWD-PW ducts to allow insertion of wires. Wires are held in place during wiring, for instance in a vertical position or during ceiling installation.

HelaDuct HTWD-BWR wire retainers is suitable for following markets and industries

Adjustable to duct width (Yes/No) No
Colour Black (BK)
Current leak stable Yes/No Yes
Pack Cont. 40pcs.
Package Quantity per pcs.
PART DESCRIPTION HTWD-BWR-40X60-PC/ABS-BK
Product Family HelaDuct HTWD-BWR wire retainers
Product Group For mounting prior to wiring
Short Description Wire securing clamp 40x60 mm, PC/ABS, black
For cable duct height 60mm
For cable duct width 40mm

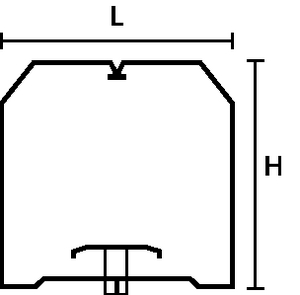

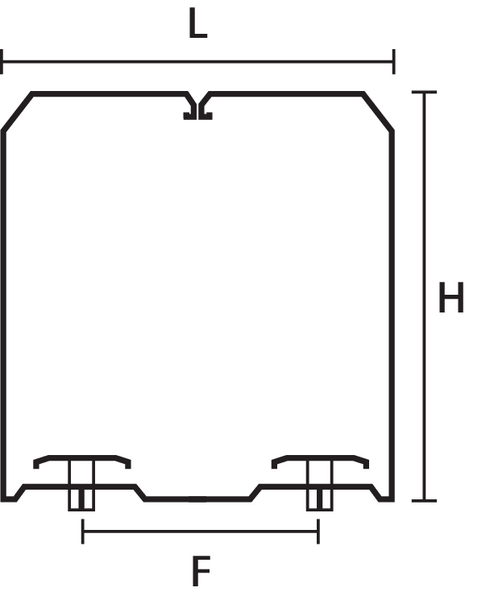

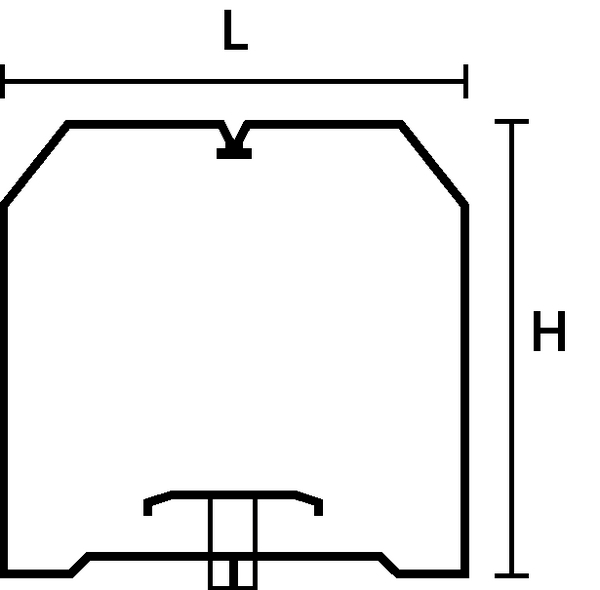

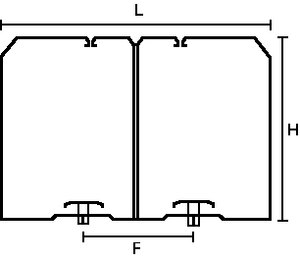

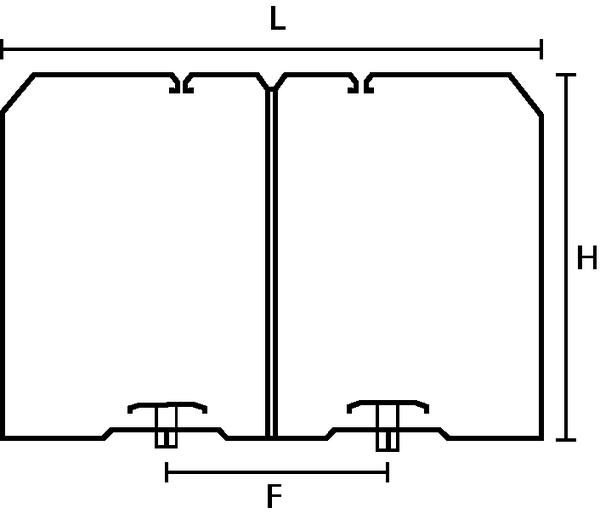

Height (H) 56mm
Length (L) 35mm
Length (L2) 35mm

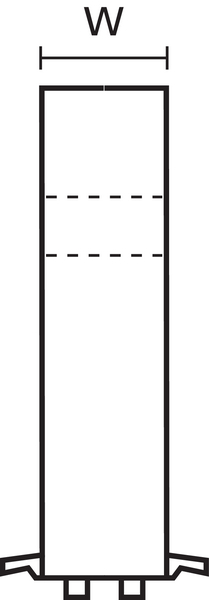

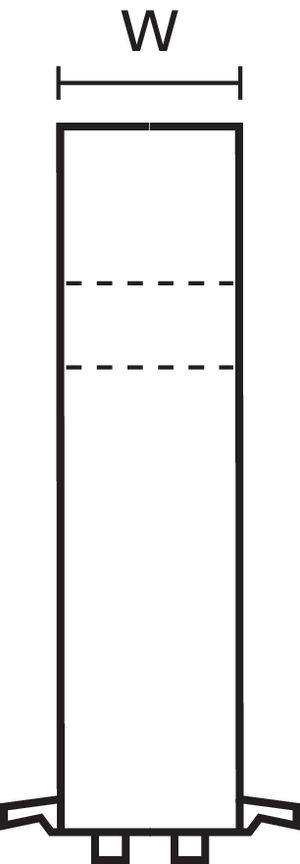

Width (W) 20mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous good No
Material Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
Operating Temperature - °C -5 °C to +80 °C
Specifications
EAN / GTIN 4031026567303
Packaging 1 - Height (m) 0.174m
Packaging 1 - Length (m) 0.198m
Packaging 1 - Qty 40
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0091
Packaging 1 - Weight (kg) 0.32kg
Packaging 1 - Width (m) 0.264m
Packaging 3 - Height (m) 0.18m
Packaging 3 - Length (m) 0.265m
Packaging 3 - Qty 120
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0095
Packaging 3 - Weight (kg) 1.46kg
Packaging 3 - Width (m) 0.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 4320
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 73.56kg
Packaging 4 - Width (m) 0.8m
Weight 0.32kg
ETIM 6.0 EC001018
ETIM 7.0 Key EC001018
