InfoStream Multi-Channel Raceway


Art.-No. 250-00003

| MCR-B8-PVC-WH

 |

Copied

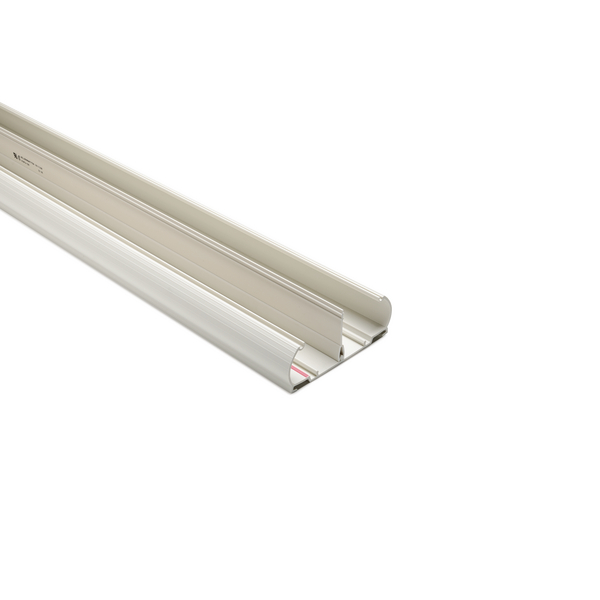

Multi-Channel Raceway Base With Center Divider
Raised bracket allows for additional wire fill space and additional device clearance.
Option for communications devices in raceway and electrical outlets on side.
Option for communications devices in raceway and electrical outlets on side.
Raised bracket allows for additional wire fill space and additional device clearance.
Raceway and fittings are manufactured from a UL94 V0 rated material to ensure compliance with codes.
Raceway and fittings are manufactured from a UL94 V0 rated material to ensure compliance with codes.
Raceway and fittings are manufactured from a UL94 V0 rated material to ensure compliance with codes.
Raceway and fittings are manufactured from a UL94 V0 rated material to ensure compliance with codes.
Raceway and fittings are manufactured from a UL94 V0 rated material to ensure compliance with codes.
Raceway and fittings are manufactured from a UL94 V0 rated material to ensure compliance with codes.
Raceway and fittings are manufactured from a UL94 V0 rated material to ensure compliance with codes.

    This product is not available anymore.

    Add to watchlist
    Downloads
    Colour Office White (OEWH)
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION MCR-B8-PVC-WH
    Package Content 14.63m
    Package Content packed in box
    Product Group InfoStream Multi-Channel Raceway
    Type MCR-B8
    Height (H) 52.07mm
    Length (L) 2.44m
    Width (W) 114.3mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E211305
    Country of Origin US
    Customs Number 3925902000
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131710

    Solutions

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
