InfoStream Multi-Channel Raceway
Art.-No. 250-00019 | MCR-FE-PVC-WH Details

This product is not available anymore.
  • Raceway and fittings are manufactured from a UL 94V-0 rated material to ensure compliance with codes
  • Fittings have been designed to maintain the required 1" minimum bend radius to meet TIA/EIA-568-B and 569-A standards
  • Raceway and fittings are U.L. Listed to 600 Volts to meet new UL5A and CSA 22.2 No. 62-93 standards
  • Patented hinged cover speeds installation time by allowing installer to partially mount cover prior to laying cables
Colour Office White (OEWH)

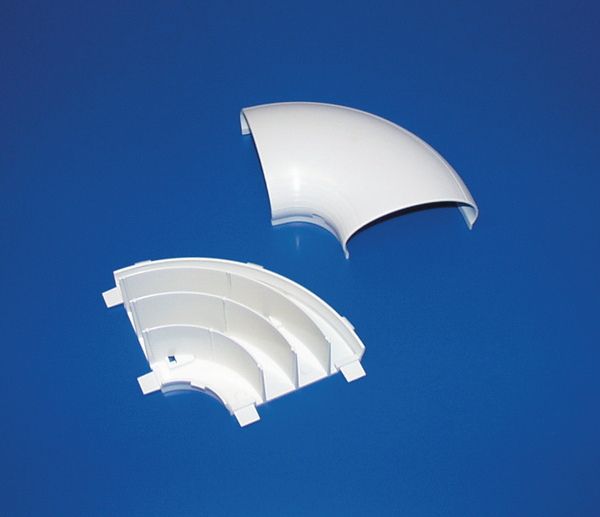

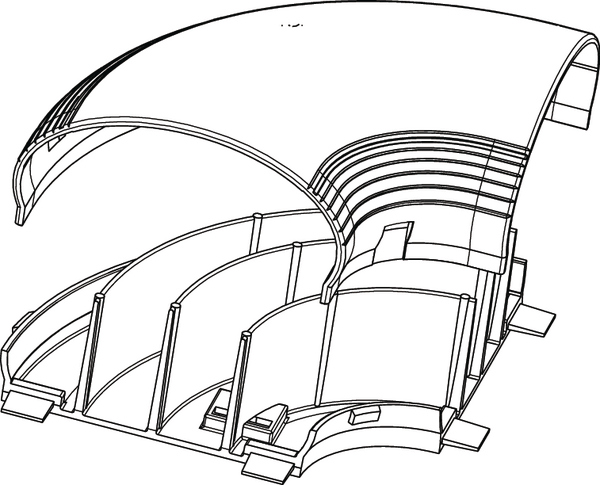

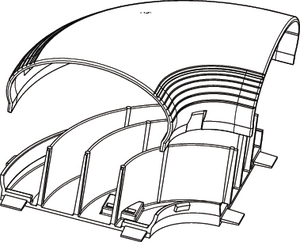

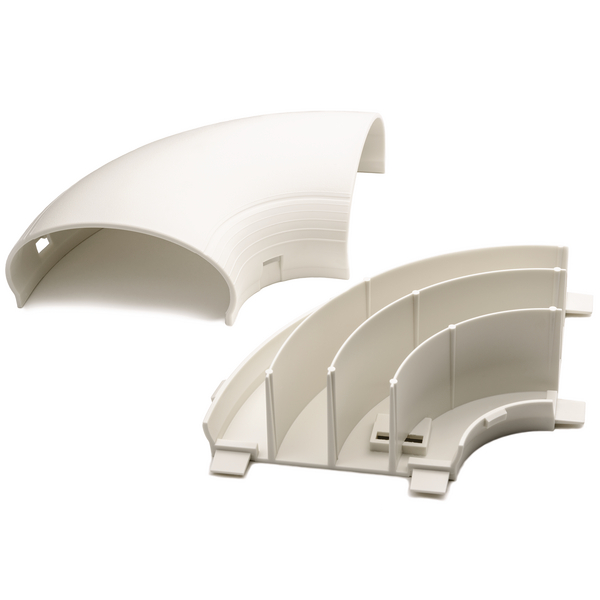

Description The Multi-Channel Flat Elbow joins raceway segments at 90 degrees on a flat surface.
Material Polyvinylchloride (PVC)
Pack Cont. 1pc.
Package Content packed in bag
PART DESCRIPTION MCR-FE-PVC-WH
Product Group InfoStream Multi-Channel Raceway
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogen-free No
Operating Temperature +50 °C
Specifications
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E211305
Country of Origin US
Customs Number 3925902000
Packaging 3 - Height (m) 0.21589999999999998m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Width (m) 0.396875m
ETIM 7.0 Key EC000059
ETIM 8.0 Key EC000059
ETIM 9.0 Key EC000059
UNSPSC Key 39131717
