26/06/2026

Acessory of wiring duct raceway system in self-extinguishing ABS


Art.-No. 250-00284

| MCTF-ABS-GY

 |

Copied
  • Effective separation between power cables, data, pipelines, gas, compressed air, water and others;
  • Ideal for renovations, retrofits and new buildings;
  • Easy to sanitize, allowing its use in hospitals, clinics and laboratories;
  • Does not oxide, indicated for use in properties located in areas of sea air;
  • Highly resistant material, reinforcements for support are not needed.

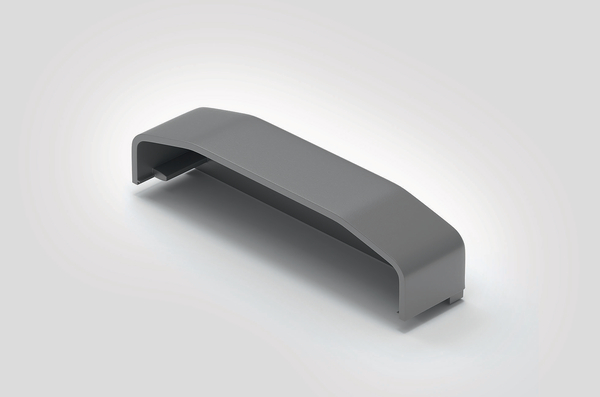

Application The MEGACANAL end cap is used to finish the ends of the installation.
Colour Grey (GY)
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION MCTF-ABS-GY
Package Content 20pcs.
Package Content packed in bag
Product Family Megacanal System in ABS
Product Group Acessory of wiring duct raceway system in self-extinguishing ABS
Type MCTF
Flammability UL 94 V0
Operating Temperature -5 °C to +60 °C
ROHS compliant No
Country of Origin BR
Customs Number 3925902000
GTIN-13 / EAN 7890176093844
ETIM 7.0 Key EC000059
ETIM 8.0 Key EC000059
ETIM 9.0 Key EC000059
UNSPSC Key 39131712
