29/04/2024

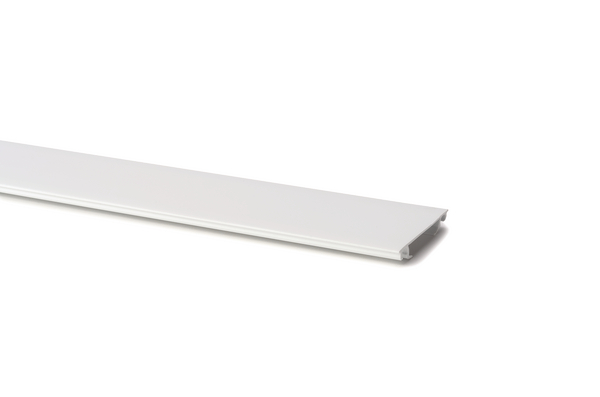

Accessory, white, 36.58m (MDC2.5)
Art.-No. 181-01024 | MDC2.5-PVC-WH |  Details

Cover channels maintain contact with rotational sidewall head, allowing hinging on both sides and simplifying access to wires.

    Add to watchlist
    Colour White (WH)
    Material Polyvinylchloride (PVC)
    Pack Cont. 36.58m
    Package Content packed in carton
    PART DESCRIPTION MDC2.5-PVC-WH
    Length (L) 1.83m
    Thickness (T) 1.52mm
    Width (W) 35.4mm
    Width (W2) 69.9mm
    Width (W3) 69.9mm
    CE Certification No
    Halogen-free No
    Operating Temperature +50 °C
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    Country of Origin US
    GTIN-13 / EAN 4031026627915
    UNSPSC Key 39131713

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
