26/10/2025

Acessory of wiring duct raceway in ABS
Art.-No. 250-00144 | PR7517-ABS-GY |

Copied

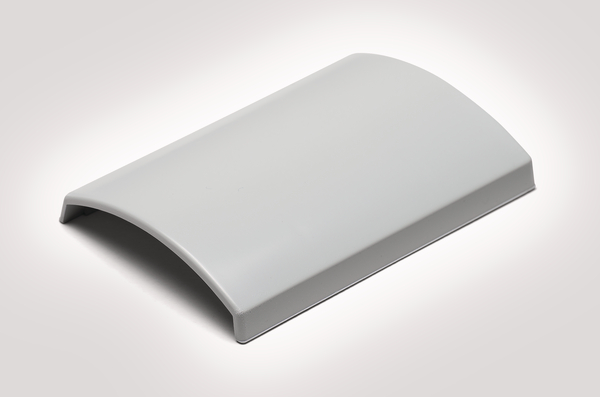

Extender PR7517.
PR7517

    • Effective separation between power and / or data cables;
    • Ideal for renovations, retrofits and new buildings;
    • Do not oxidize, use indicated for properties located in areas of sea air;
    • Highly resistant material, no need of reinforcements for support.
    Add to watchlist
    Application The PR7517 extender is used for finishing at union points of flooring wiring ducts 7517.
    Colour Grey (GY)
    Description Prolongador
    Material Acrylonitrile Butadiene Styrene (ABS)
    PART DESCRIPTION PR7517-ABS-GY
    Package Content 4pcs.
    Package Content packed in pack
    Product Family Flooring wiring duct accessories in grey ABS
    Product Group Acessory of wiring duct raceway in ABS
    Type PR7517

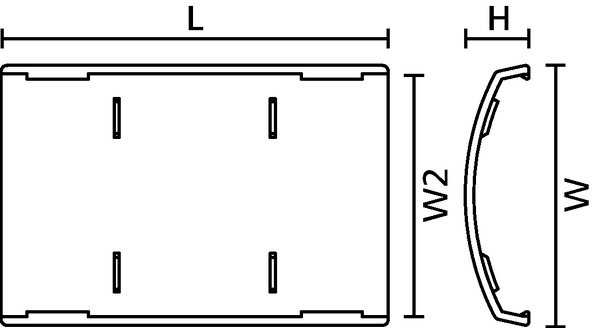

    Height (H) 19.7mm
    Length (L) 120mm
    Width (W) 80.0mm
    Width (W2) 75.0mm
    Flammability UL 94 V0
    ROHS compliant No
    Country of Origin BR
    Customs Number 3925902000
    GTIN-13 / EAN 7890176031457
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
