20/02/2026

Accessory, grey, 1pc. (SC4X4)
Art.-No. 181-00038 | SC4X4-PVC-GY

Copied

    • Easily cut to size for the appropriate duct size.
    • Provides a smooth transition between sections of duct.
    Add to watchlist
    Downloads
    Application Straight and 90° accessories to connect Heladuct HD wiring ducts are supplied in 0.5 meter bars. These bars can be cut during the application in the necessary length for each wiring duct size.
    Color Gray (GY)

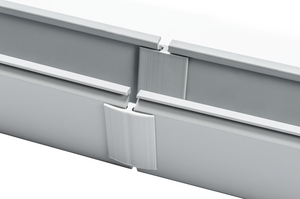

    Description HellermannTyton’s Wiring Duct Connectors include corner strips and straight connectors. Corner strips are used for a rounded and smoother transition between sections of wiring duct meeting at a right angle whereas straight connectors join straight duct runs to cover and protect wires. Straight connectors are supplied in 6 foot lengths, can be used with all sizes of duct, and can be cut to fit duct sidewall heights.
    PART DESCRIPTION SC4X4-PVC-GY
    Packaging Type bag
    Part No. 181-00038
    Short Desc. Wiring Duct Straight Connector, 4" x 4", 4" Long, Gray, PVC, 1/pkg
    Type SC4X4
    Height (imperial) 4.0"
    Height (metric) 101.6mm
    Length (imperial) 4.0"
    Length (metric) 101.6mm
    Width (imperial) 4.0"
    Width (metric) 101.6mm
    CE Certification No
    Flammability UL 94 V-0
    Halogen Free No
    Material PVC
    Material Polyvinylchloride (PVC)
    Operating Temperature +122°F (+50°C)
    REACH Conformity No
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3925900000
    Pkg. Qty. 1EA
    Pkg. Qty. 1

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
