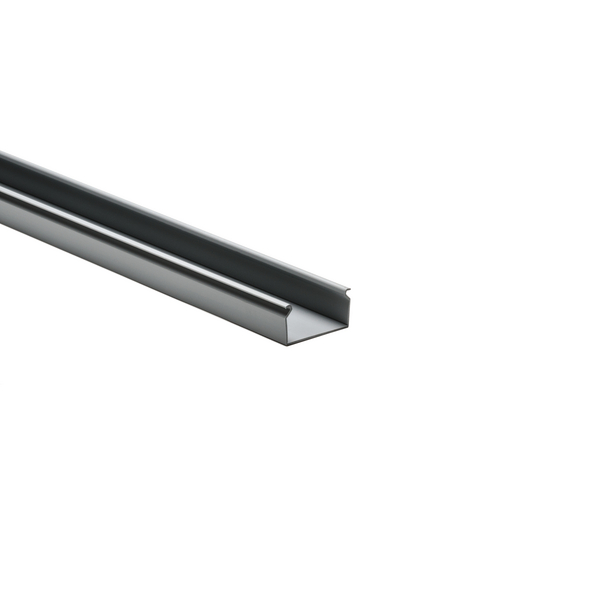

Wiring duct, 50.8x26.9mm, L=1.83m, grey, 36.58m
Art.-No. 181-21001 | SD2X1-PVC-GY |

Copied
Solid wall construction provides excellent coverage to keep wires clean.
Durable duct material protects wires from damage, with long-lasting performance.
Solid wall construction provides excellent coverage to keep wires clean.
Durable duct material protects wires from damage, with long-lasting performance.
Durable duct material protects wires from damage, with long-lasting performance.

    Add to watchlist
    Downloads
    Colour Grey (GY)
    Fixation Method Non-Adhesive
    Material Polyvinylchloride - rigid extrusion grade (PVC)
    PART DESCRIPTION SD2X1-PVC-GY
    Package Content 36.58m
    Package Content packed in carton
    Type SD2X1
    UV-Stabilised No
    Fixing Hole Centres (F) 4.0"
    Fixing Hole Centres (F) 101.6mm
    Height (H) 26.9mm
    Length (L) 1.83m
    Width (W) 50.8mm
    Width (W2) 50.8mm
    Width (W6) 12.7mm
    Width (W6) 0.5"
    CE Certification Yes
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64139
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026719078
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.269875m
    Packaging 3 - Length (m) 1.8447m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.2173m³
    Packaging 3 - Width (m) 0.4365625m
    ETIM 7.0 Key EC000059
    ETIM 8.0 Key EC000059
    ETIM 9.0 Key EC000059
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
