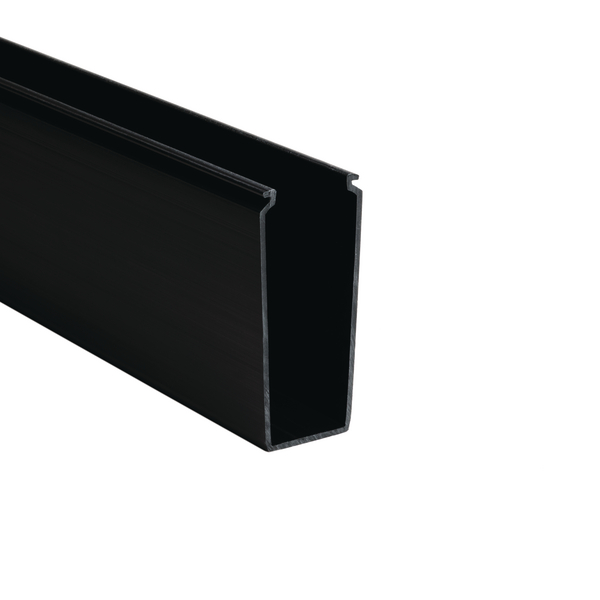

Solid Wall Wiring Duct
Art.-No. 181-00537 | SDA1.5X4-PVC-BK

Copied
Pressure-sensitive, rubber-based adhesive backing aids in temporary positioning.
Durable duct material protects wires from damage, with long-lasting performance.
Durable duct material protects wires from damage, with long-lasting performance.
Solid Wall wiring duct it designed for straight wire runs where break outs are not required.
Solid wall construction provides excellent coverage to keep wires clean.

    • Solid wall construction provides excellent coverage to keep wires clean.
    • Durable material protects wires from damage, with long-lasting performance.
    • Standard colors complement or contrast light and dark environments.
    • Nonpermanent adhesive allows repositioning prior to final installation.
    • Optional covers snap on and off easily, and their nonslip lining ensures they stay in place even under vibration.
    Add to watchlist
    Downloads
    Color Black (BK)
    Description HellermannTyton Solid Wall Wiring Duct efficiently routes and protects wire. Solid wall wiring duct is designed for straight wire runs where breakouts are not required. Solid wall wiring duct is manufactured from high-impact, rigid PVC; comes in standard colors of white, gray and black; and is available in 6-foot lengths.
    PART DESCRIPTION SDA1.5X4-PVC-BK
    Packaging Type carton
    Part No. 181-00537
    Product family Solid Wall Wiring Duct
    Short Desc. Solid Wall Wiring Duct, 1.5" x 4", Adhesive, PVC, Black, 60ft/Carton
    Technical Description Adhesive
    Type SDA1.5X4
    UV Resistant No
    Fixation Method Adhesive
    Height (imperial) 4.07"
    Height (metric) 103.4mm
    Length (imperial) 6.0ft
    Length (metric) 1.83m
    Max. Bundle Diameter (imperial) 0"
    Min. Bundle Diameter (imperial) 0"
    Mounting Hole Centers (imperial) 4.0"
    Width (imperial) 1.5"
    Width (metric) 38.1mm
    Width 2 (imperial) 1.5"
    Width 2 (metric) 38.1mm
    CE Certification Yes
    CSA Certified Yes
    Halogen Free No
    Material PVC
    Material Polyvinylchloride (PVC)
    Operating Temperature +122°F (+50°C)
    REACH Conformity No
    ROHS compliant Yes
    UL File Number [Logo] E64139 [RU]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    Customs Number (Schedule B) 3925900000
    Pkg. Qty. 18.3m
    Pkg. Qty. 60ft

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
