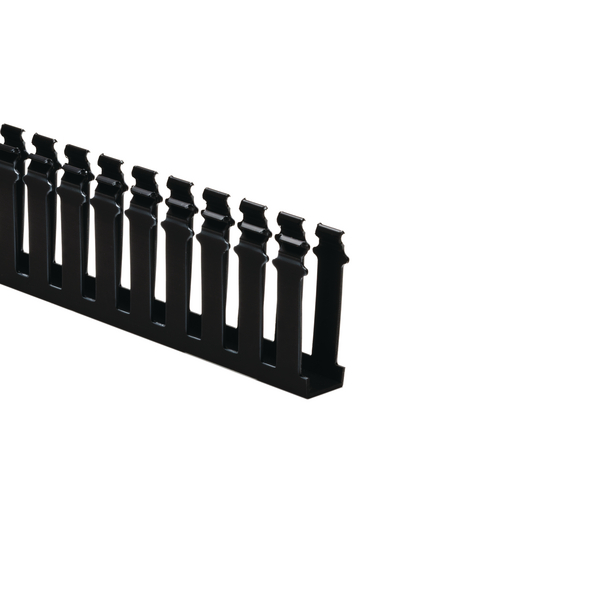

Slotted Wall Wiring Duct
Art.-No. 181-00310 | SL1X3-PVC-BK

Copied
Strong fingers prevent unwanted breaking.
Strong fingers prevent unwanted breaking.

    • Strong fingers prevent unwanted breaking.
    • Fingers are easily deflected outward, allowing ready positioning of the wires within the slotted wall duct.
    • Restricted opening design in the finger of the duct helps keep wires in place.
    • Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
    • Supplied with mounting holes to streamline installation.
    • Optional covers enhance protection and appearance.
    Package size
    Add to watchlist
    Downloads
    Color Black (BK)
    Description HellermannTyton Slotted Wall Wiring Duct features break-away fingers that provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a greater opening is required. The lower score line allows the sidewall to be smoothly cut for joints and T’s.
    PART DESCRIPTION SL1X3-PVC-BK
    Packaging Type box
    Part No. 181-00310
    Product family Slotted Wall Wiring Duct
    Short Desc. Slotted Wall Wiring Duct, 1" X 3", Non-Adhesive, PVC, Black, 30ft/Box
    Technical Description Non-Adhesive
    Type SL1X3
    UV Resistant No
    Height (imperial) 3.07"
    Height (metric) 77.9mm
    Length (imperial) 6.0ft
    Length (metric) 1.83m
    Max. Bundle Diameter (imperial) 0"
    Min. Bundle Diameter (imperial) 0"
    Mounting Hole Centers (imperial) 4.0"
    Width (imperial) 1.0"
    Width (metric) 25.4mm
    Width 2 (imperial) 1.0"
    Width 2 (metric) 25.4mm
    Width 3 (imperial) 0.4"
    Width 3 (metric) 10.2mm
    Width 4 (imperial) 1.0"
    Width 4 (metric) 25.4mm
    Width 5 (imperial) 2.6"
    Width 5 (metric) 66.0mm
    CE Certification No
    CSA Certified Yes
    Halogen Free No
    Material PVC
    Material Polyvinylchloride - rigid extrusion grade (PVC)
    Operating Temperature +122°F (+50°C)
    REACH Conformity No
    ROHS compliant Yes
    UL File Number [Logo] E64139 [RU]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    Pkg. Qty. 9.14m
    Pkg. Qty. 30.0ft

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
