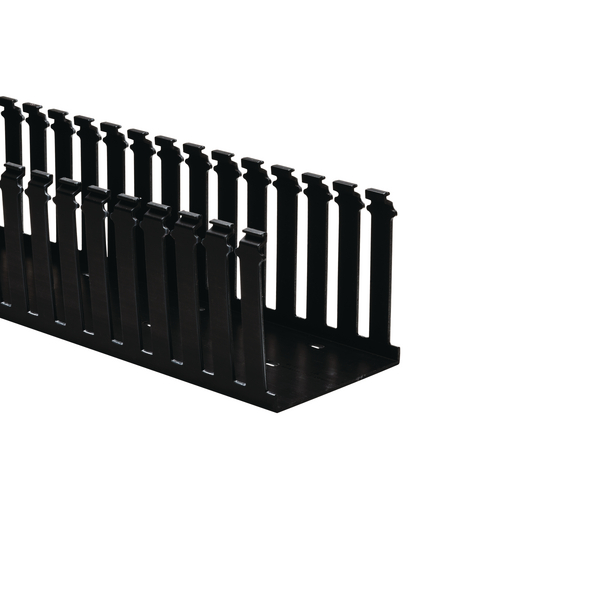

Wiring duct, 101.6x103.4mm, L=1.83m, black, 36.58m
Art.-No. 181-44020 | SL4X4-PVC-BK |

Copied
Strong fingers prevent unwanted breaking.
Strong fingers prevent unwanted breaking.

    Package size
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Non-Adhesive
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SL4X4-PVC-BK
    Package Content 36.58m
    Package Content packed in carton
    Type SL4X4
    UV-Stabilised No
    Fixing Hole Centres (F) 4.0"
    Fixing Hole Centres (F) 101.6mm
    Height (H) 103.4mm
    Length (L) 1.83m
    Width (W) 101.6mm
    Width (W2) 101.6mm
    Width (W3) 10.2mm
    Width (W4) 25.4mm
    Width (W4) 1.0"
    Width (W5) 3.6"
    Width (W5) 91.4mm
    Width (W6) 38.1mm
    Width (W6) 1.5"
    CE Certification Yes
    CSA Certified Yes
    Halogen-free No
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64139
    Country of Origin US
    GTIN-13 / EAN 4031026126951
    Packaging 1 - Qty 25
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.0000kg
    Packaging 2 - Qty 1
    Packaging 3 - Height (m) 0.2270125m
    Packaging 3 - Length (m) 1.84785m
    Packaging 3 - Qty 25
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.2344m³
    Packaging 3 - Width (m) 0.5588m
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC000012
    ETIM 8.0 Key EC000012
    ETIM 9.0 Key EC000012
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
