01/08/2025

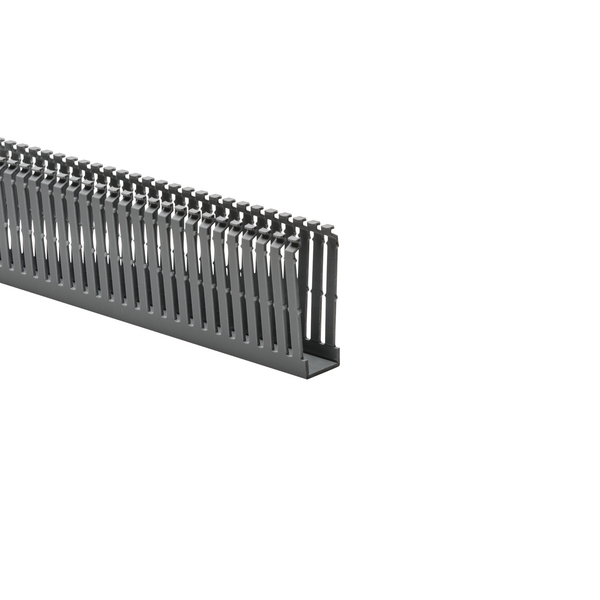

Wiring duct, 76.20x77.90mm, L=2.13m, grey, 21.34m
Art.-No. 184-22205 | SLHD3X5-PVC-GY |

Copied
Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.

    Package size
    Add to watchlist
    Downloads
    Colour Grey (GY)
    Material Polyvinylchloride - rigid extrusion grade (PVC)
    PART DESCRIPTION SLHD3X5-PVC-GY
    Package Content 21.34m
    Package Content packed in carton
    Type SLHD3X5
    UV-Stabilised No
    Height (H) 77.90mm
    Length (L) 2.13m
    Width (W) 76.20mm
    Width (W2) 76.2mm
    Width (W3) 10.16mm
    Width (W4) 25.40mm
    Width (W4) 1.00"
    Width (W5) 4.60"
    Width (W5) 116.80mm
    Width (W6) 25.4mm
    Width (W6) 1.00"
    CE Certification Yes
    CSA Certified Yes
    Operating Temperature +50 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    Specifications CSA, EN 50085-1:2005 + A1:2013, EN 50085-2-3_1A, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E64139
    Country of Origin US
    Customs Number 3925902000
    GTIN-13 / EAN 4031026588902
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.138112499999999m
    Packaging 3 - Length (m) 2.1558m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1678m³
    Packaging 3 - Width (m) 0.5635625m
    ETIM 7.0 Key EC000012
    ETIM 8.0 Key EC000012
    ETIM 9.0 Key EC000012
    UNSPSC Key 39131712

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
